- 36C Series Monochrome FPD-Link III Camera
- FPD-Link III Interface
- 1/2.6 inch onsemi CMOS AR0234CS Sensor
- 1,920×1,200 (2.3 MP), up to 100 fps
- Pixel Size: H: 3 µm, V: 3 µm
- IP6K6 and IP6K7 Compliant (ISO 20653)
- Global Shutter
- Trigger Input
- Only 36×36×60.3 mm
- Specification
- Documentation
- Downloads
- Cables
| General Behavior | |
| Dynamic Range | 10 bit |
| Resolution | 1,920×1,200 (2.3 MP) |
| Frame Rate | 100 fps |
| Video Output Format | 10-Bit Monochrome |
| Ingress Protection | |
| Protection Rating | IP6K6 and IP6K7 |
| ISO Standard | ISO 20653 |
| Solid Particle Protection | 6K (maximum protection) |
| Liquid Ingress Protection | 6 (powerful water jets) |
| Additional Liquid Ingress Protection | 7 (immersion up to 1 m) |
| Interface (Optical) | |
| Sensor Type | CMOS |
| Sensor Specification | onsemi AR0234CS |
| Shutter | Global |
| Format | 1/2.6 inch |
| Pixel Size | H: 3 µm, V: 3 µm |
| Lens Mount | M12x0.5, optional |
| Interface (Electrical) | |
| Interface | FPD-Link III |
| Supply Voltage | 27 VDC to 10 VDC |
| Current Consumption | Approx. 95 mA @ 18 VDC |
| Auto-Iris Control | |
| Trigger | |
| I/O | |
| Interface (Mechanical) | |
| Dimensions | H: 36 mm, W: 36 mm, L: 60.3 mm |
| Mass | 80 g |
| Adjustments | |
| Shutter | 15 µs to 0.25 s |
| Gain | 0 dB to 19.2 dB |
| Environmental | |
| Temperature (Operating) | -5 °C to 45 °C |
| Temperature (Storage) | -20 °C to 60 °C |
| Humidity (Operating) | 20 % to 80 % (non-condensing) |
| Humidity (Storage) | 20 % to 95 % (non-condensing) |
| Subject to change. | |
 |
Industrial Cameras: Spectral Sensitivity | | 1.30 | Nov 2017 |
 |
Mark&Technik: Development Kits für Embedded Vision | | 1.0 | Sep 2020 |
 |
MDSER-FPD-1CH 3.10 | | 1.0 | Feb 2021 |
 |
MIPI Deserializer Design Recommendations | | 1.0 | Feb 2021 |
 |
MIPI Sensor Board Connector | | 1.0 | Feb 2021 |
 |
MSER-FPD 1.20 | | 1.0 | Feb 2021 |
 |
MSER-FPD 1.30 | | 1.0 | Feb 2021 |
 |
Datasheet for onsemi AR0234CS CMOS Sensor | | 1.0 | Feb 2023 |
 |
STEP File (DxK 36C-I67) | | 1.0 | Apr 2021 |
 |
The Imaging Source Catalog | New | 2010.07 | Oct 2024 |
 |

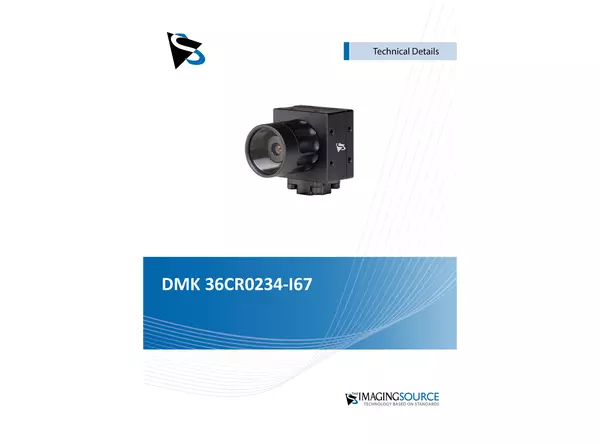

DMK 36CR0234-I67 Technical Reference Manual | | 1.2 | Aug 2024 |
 |
