NXP i.MX 8M Plus Reference Design

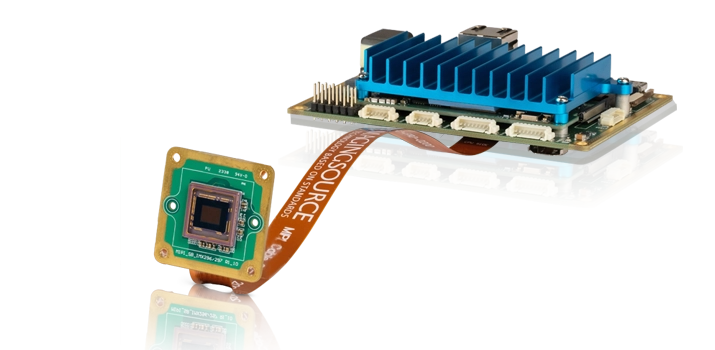

2-Channel MIPI CSI-2 Carrier Board With Toradex Verdin NXP® i.MX 8M Plus SoM

i.MX 8 Reference Design

Image Processing Power for Your Embedded Applications

Designed for versatility, The Imaging Source's embedded vision platform for NXP supports single and dual-camera applications via our modular board concept and Toradex Verdin NXP i.MX 8M Plus SoM. The integration of our  MIPI CSI-2, FPD-Link III(1) and upcoming GMSL2(1, 2) camera portfolio with robust industrial-grade computing enables precise application development, ensuring efficient turnaround of application-specific design changes that saves development time and related costs.

Our technical sales team is available to assist you with component selection. Please note: A maximum of 2 evaluation kits are available per customer.

Contact Us
Image Processing Power for Your Embedded Applications

Features

  • Resolutions: 0.4 MP - 8.3 MP
  • Interfaces: MIPI CSI-2
  • Sensors: Latest Sony and onsemi CMOS sensors
  • Optimized costs with lean hardware design
  • Optimized performance with custom configurations
  • Scalability via SoM-based design
  • Improved time to market
  • Changes to board design with short cycle times
  • Efficient first-to-market strategy
  • Image Acquisition SDK: IC Imaging Control 4
  • Seamless integration with software frameworks like GStreamer, Open CV, libcamera and others
  • MVTec HALCON support for best-in-class image processing

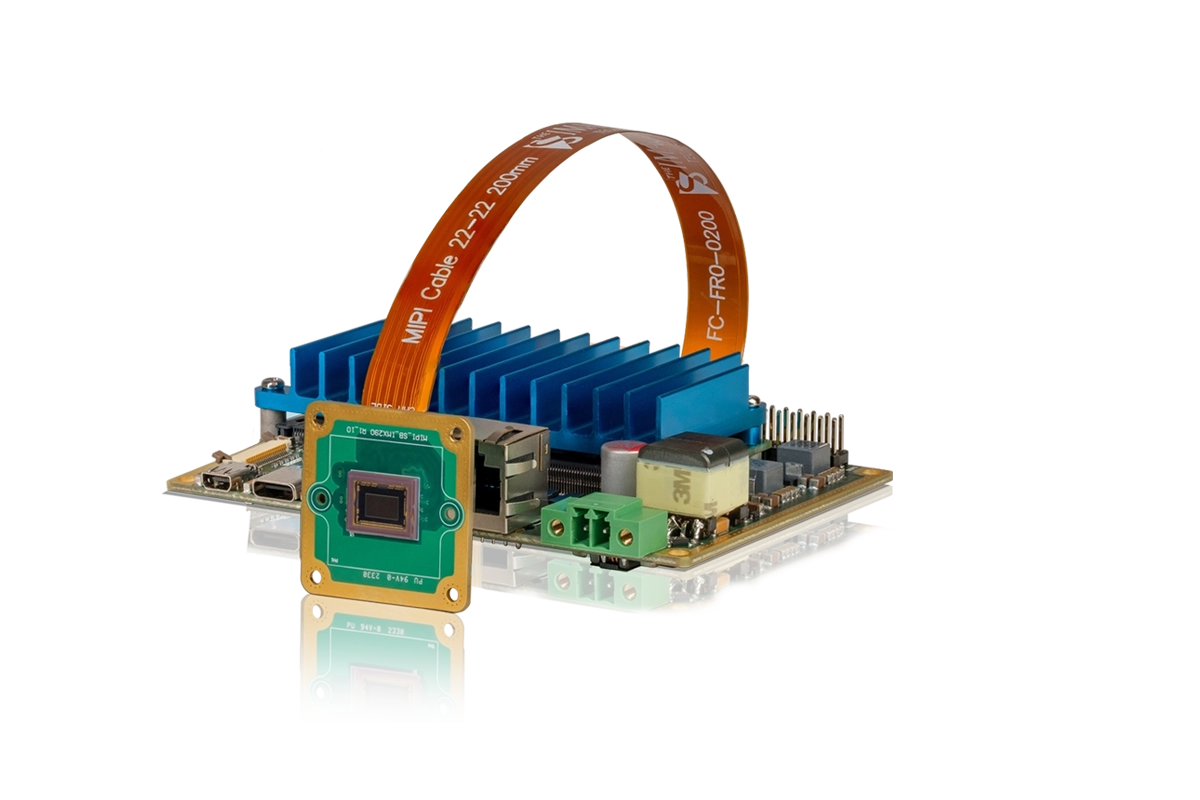

NXP i.MX 8M Plus Reference Design for Embedded Vision

NXP i.MX 8M Plus Reference Design for Embedded Vision

Documentation

Click below to download the technical documentation for this 2-Channel MIPI carrier board.

Download
