NVIDIA® Jetson Orin™ Reference Design

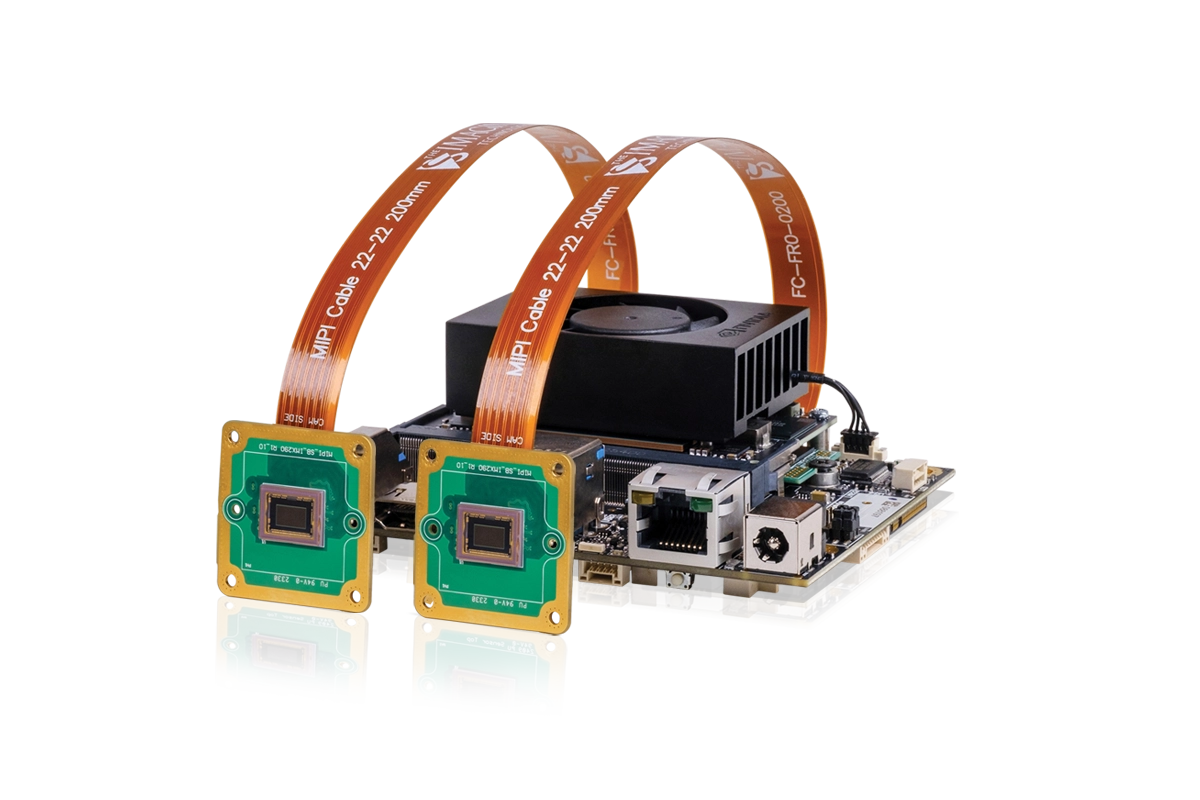

2- or 4-Channel MIPI CSI-2 Carrier Board With NVIDIA Jetson Orin NX SoM
Image Processing Power for Your Embedded Applications
Designed for versatility, The Imaging Source's embedded vision platform for NVIDIA Jetson Orin supports up to 4 cameras per system via our modular board concept and Jetson Orin NX (Nano) SoM. The integration of our MIPI CSI-2, FPD-Link III(¹) and upcoming GMSL2(¹, ²) camera portfolio with robust industrial-grade computing enables precise application development, ensuring efficient turnaround of application-specific design changes that saves development time and related costs.
Our technical sales team is available to assist you with component selection. Please note: A maximum of 2 evaluation kits are available per customer.
Advantages
- Single-Source Solution: Complete reference design for prototyping and mass production
- Camera Resolutions: 0.4 MP - 20 MP
- Interfaces: MIPI CSI-2, FPD-Link III(¹), GMSL2(¹, ²)
- Sensors: Latest Sony and onsemi CMOS sensors
- NVIDIA Jetson Orin NX (or Nano) for best image processing and AI performance
- Multi-camera support for up to 4 cameras per system
- Optimized costs with lean hardware design
- Optimized performance with custom configurations
- Scalability via SoM-based design
- Changes to board design with short cycle times
- Efficient first-to-market strategy
- Tailor-made camera drivers and software
- Seamless integration with software frameworks like GStreamer, Open CV, and others
- MVTec HALCON support for best-in-class image processing
(1) FPD-Link III or GMSL2 cameras require an additional deserializer adapter board, which is available upon request. (2) Upcoming cameras
NVIDIA Orin NX Reference Design for Embedded Vision
- Specification
- Documentation

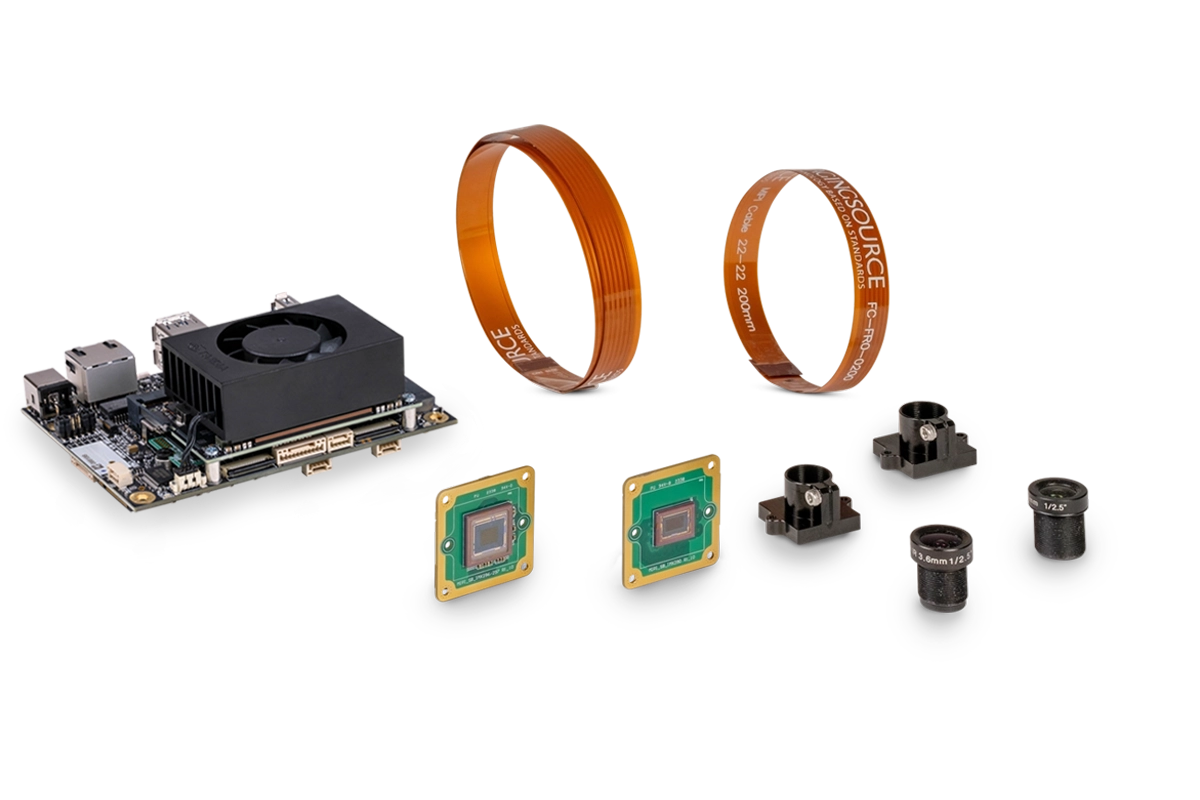

The reference design contains:
- NVIDIA Jetson Orin NX 16GB SoM
- Carrier board supporting up to 2 MIPI CSI-2(¹) or up to 4 FPD-Link III(²) or GMSL2(², ³) cameras
- SSD 128GB
- DMM 36SX462-ML MIPI CSI-2 camera with Sony IMX462 monochrome sensor
- DFM 36SX462-ML MIPI CSI-2 camera with Sony IMX462 color sensor
- M12 lens: TBL 8 / TBL 8 C
- Lens holder: 2x TLH 10-M
- Cable: 2x FFC 300mm/22 Pin
- Operating system with board support package
- Software: tiscamera for rapid development and performance
(1) Carrier board supporting up to 4 MIPI CSI-2 cameras are available on demand. (2) FPD-Link III or GMSL2 cameras require an additional deserializer adapter board, which is not included. (3) Upcoming cameras
Getting Started Guide
Click below to download the Getting Started Guide for the NVIDIA Jetson Orin Reference Design.
Technical Reference Manual
Click below to download the Technical Reference Manual for the NVIDIA Jetson Orin Reference Design.
