DFM 36SX415-ML

36S Series

Get Quotation

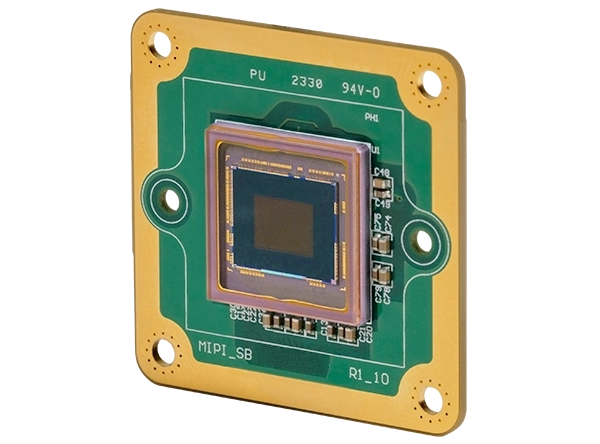

  • 36S Series Color MIPI CSI-2 Camera
  • 22-Pin MIPI CSI-2 connector compatible with NVIDIA Orin, NXP i.MX 8M Plus and Raspberry Pi 5
  • 1/2.8 inch Sony CMOS STARVIS IMX415 Sensor
  • 3,840×2,160 (8.3 MP), up to 50 fps
  • Pixel Size: H: 1.45 µm, V: 1.45 µm
  • Rolling Shutter
  • Only 30×30×6 mm
  • Specification
  • Documentation
  • Downloads
  • Cables
General Behavior
Dynamic Range 12 bit
Resolution 3,840×2,160 (8.3 MP)
Frame Rate 50 fps
Video Output Format 10-Bit Bayer (GB), 12-Bit Bayer (GB)
Interface (Optical)
Sensor Type CMOS STARVIS
Sensor Specification Sony IMX415
Shutter Rolling
Format 1/2.8 inch
Pixel Size H: 1.45 µm, V: 1.45 µm
Lens Mount M12x0.5, optional
Interface (Electrical)
Interface 22-pin FFC connector
Supply Voltage 3.15 VDC to 3.45 VDC
Current Consumption Approx. tbd mA @ 3.3 VDC
Auto-Iris Control
Trigger
I/O
Interface (Mechanical)
Dimensions H: 30 mm, W: 30 mm, L: 6 mm
Mass 4 g
Adjustments
Shutter 15 µs to 0.1 s
Gain 0 dB to 72 dB
Environmental
Board Temperature (Operating) -30 °C to 85 °C
Temperature (Storage) -40 °C to 85 °C
Humidity (Operating) 20 % to 80 % (non-condensing)
Humidity (Storage) 20 % to 95 % (non-condensing)
Subject to change.
