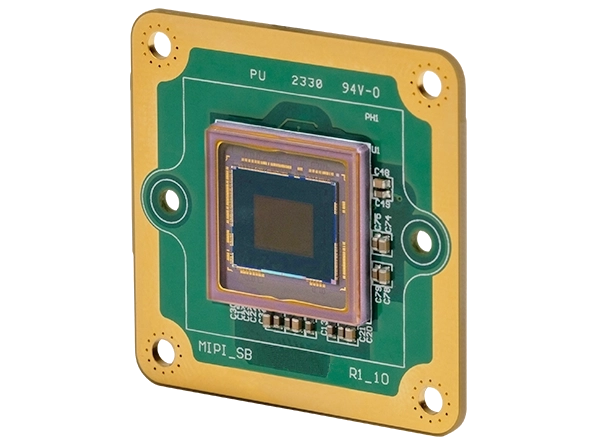

- 36S Series Monochrome MIPI CSI-2 Camera
- 22-Pin Raspberry Pi-Compatible Connector
- 1/2.9 inch Sony CMOS Pregius IMX297 Sensor
- 720×540 (0.4 MP), up to 120 fps
- Pixel Size: H: 6.9 µm, V: 6.9 µm
- Global Shutter
- Trigger Input
- Only 30×30×6 mm
- Specification
- Documentation
- Downloads
- Cables
| General Behavior | |
| Dynamic Range | 10 bit |
| Resolution | 720×540 (0.4 MP) |
| Frame Rate | 120 fps |
| Video Output Format | 10-Bit Monochrome |
| Interface (Optical) | |
| Sensor Type | CMOS Pregius |
| Sensor Specification | Sony IMX297 |
| Shutter | Global |
| Format | 1/2.9 inch |
| Pixel Size | H: 6.9 µm, V: 6.9 µm |
| Lens Mount | M12x0.5, optional |
| Interface (Electrical) | |
| Interface | 22-pin FFC connector |
| Supply Voltage | 3.15 VDC to 3.45 VDC |
| Current Consumption | Approx. 280 mA @ 3.3 VDC |
| Auto-Iris Control | |
| Trigger | |
| I/O | |
| Interface (Mechanical) | |
| Dimensions | H: 30 mm, W: 30 mm, L: 6 mm |
| Mass | 4 g |
| Adjustments | |
| Shutter | 1 µs to 1 s |
| Gain | 0 dB to 48 dB |
| Environmental | |
| Temperature (Storage) | -40 °C to 85 °C |
| Humidity (Operating) | 20 % to 80 % (non-condensing) |
| Humidity (Storage) | 20 % to 95 % (non-condensing) |
| Subject to change. | |
 |
