Board Cameras
Tried and tested, The Imaging Source board-level cameras are optimized for cost sensitive, high-volume machine vision projects and offer maximum flexibility for a wide range of space-limited applications.

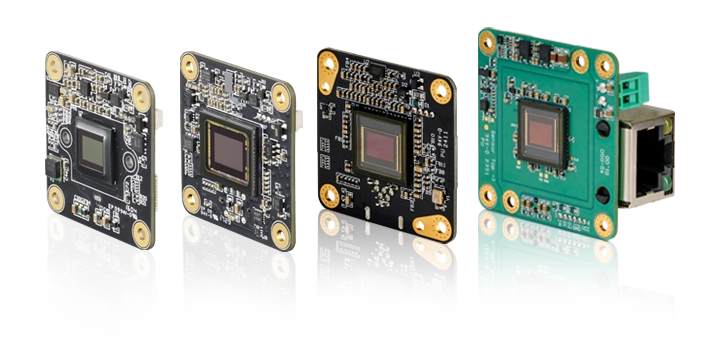

Board-Level Cameras From The Imaging Source
Designed for Demanding, Price-Sensitive Machine Vision Projects, The Imaging Source's Board-Level Cameras Ensure Easy Integration and Long-Term Availability.
Tried and tested, The Imaging Source board-level cameras are optimized for cost-sensitive, high-volume machine vision projects and offer maximum flexibility for a wide range of space-limited applications.
The Imaging Source's broad portfolio of industrial board-level cameras feature a range of CMOS sensors including Sony's latest Pregius and STARVIS sensors as well as cost-optimized sensors from onsemi. The board cameras' USB3 Vision, GigE Vision and GeniCam compliance ensures quick integration with third-party hardware and nearly all image processing libraries.
Features
- Latest CMOS sensors: onsemi and Sony including Pregius (global shutter) and STARVIS (rolling shutter)
- Interfaces: Wide range of interfaces and connector types: USB-Vision, GigE-Vision and GeniCam compliant
- Cost-effective design: M12 mini-lenses (S-mount) and also compatible with C/CS-mount lenses
- Triggers and I/Os: Hardware and software trigger as well as I/Os for demanding machine vision applications
- Resolutions: 0.4 MP to 42 MP with highest image quality and high frame rates
- Warranty and long-term availability: 3-year warranty with continuous support
- Free SDKs and end-user software: Latest Windows and Linux releases
A Quick Guide to The Imaging Source's Board Camera Families
37 Series
USB 3.1
USB 3.1 single-board cameras - imaging for virtually every machine vision application
As with our 37 series industrial cameras, the board-level versions feature Sony's Pregius and STARVIS sensors - the first sensors developed by Sony especially for industrial applications. These USB3-Vision and GeniCam-compliant board-level cameras deliver excellent image quality suitable for demanding machine vision tasks - making them a cost-effective solution for a range of applications such as intelligent traffic systems (ITS), optical inspection, medical engineering, logistics and more. The cameras' small footprint (with PCB dimensions as small as 30 x 30 x 15 mm) and reversible Type-C port allow for easy integration into space-constrained designs.
37U Series
37 series board cameras:USB 3.1 (Type-C) interface
Angled connector:Available upon request, please contact our sales team.
27 Series
USB 3.0
The 37 series predecessor
The Imaging Source 27 Series USB 3.0 board cameras feature reliable CMOS sensors from onsemi with resolutions from 1.2 to 10.7 MP.
These board-level cameras produce a high-quality video stream and high frame rates. Hardware features include digital I/O strobe, binning and ROI. Cameras from the 27 Series are also available as housed cameras.
27 Series
27 Series board cameras: USB 3.0 interface2 Series (One4All)
USB 2.0
Single-board cameras ideal for cost-sensitive USB 2.0 and OEM applications
The Imaging Source's USB 2.0 board cameras feature onsemi CMOS sensors with resolutions ranging from 0.4 to 5MP and are the perfect choice for very cost-sensitive USB 2.0 machine vision projects. The small board-level form factor creates maximum flexibility for a wide range of space-limited applications. Equipped with a broad feature set (e.g. binning, windowing and high-speed readout), these cameras deliver a substantial reduction in image noise levels and provide exceptional image quality even in poor or fluctuating lighting conditions. Specific models are available with a variety of input, output, strobe and trigger options. Cameras from the 2 Series are also available as a housed cameras.
2U Series
Angled connector:Available upon request, please contact our sales team.
25G Series
GigE
GigE Board Cameras
These GigE board-level cameras offer small PCB dimensions (45 x 45 x 20 mm) and are perfect for a wide variety of industrial automation, quality assurance and surveillance applications requiring a GigE interface. In addition to unsurpassed data transmission and cable lengths of up to 100 meters offered by the GigE interface, performance-enhancing features available on the CMOS cameras such as binning, windowing and high-speed readout, dramatically reduce image noise levels.
25G Series
25 Series board cameras: GigE interfaceCustom and OEM Industrial Cameras
Application-specific imaging solutions from experts with over 30 years of machine vision experience and know-how
In addition to manufacturing a wide variety of ready-made machine vision cameras, The Imaging Source also manufactures customized camera solutions for customer-specific requirements. Customers may specify minor or major changes to casing design, PCB layout, connection type, location and pinning, in addition to alterations to software drivers and end-user applications. The Imaging Source guarantees to manufacture customized camera solutions to the same high technical level as our ready-made cameras.
OEM Cameras
