- 32U Series Color Board Camera
- USB 2.0 Interface, PicoBlade
- 1/3 inch onsemi CMOS AR0234CS Sensor
- 744×480 (0.4 MP), up to 89 fps
- Pixel Size: H: 6 µm, V: 6 µm (binned from raw 3 µm x 3 µm)
- Global Shutter
- Trigger and I/O Inputs
- Only 30×30×15 mm
- Specification
- Documentation
- Downloads
- Cables
- Optics
| General Behavior | |
| Vision Standard | Compatible with The Imaging Source GenTL Producer for USB3 Vision Cameras |
| Dynamic Range | 10 bit |
| Resolution | 744×480 (0.4 MP) |
| Frame Rate | 89 fps |
| Video Output Format | 8-Bit Bayer (GR), 10-Bit Bayer Packed (GR), 16-Bit Bayer (GR) |
| Interface (Optical) | |
| Sensor Type | CMOS |
| Sensor Specification | onsemi AR0234CS |
| Shutter | Global |
| Format | 1/3 inch |
| Pixel Size | H: 6 µm, V: 6 µm (binned from raw 3 µm x 3 µm) |
| Lens Mount | M12x0.5, optional |
| Interface (Electrical) | |
| Interface | USB 2.0 (forwards compatible), PicoBlade |
| Supply Voltage | 4.75 VDC to 5.25 VDC |
| Current Consumption | Approx. 220 mA @ 5 VDC |
| Auto-Iris Control | |
| Trigger | |
| I/O | |
| Interface (Mechanical) | |
| Dimensions | H: 30 mm, W: 30 mm, L: 15 mm |
| Mass | 7 g |
| Adjustments | |
| Shutter | 50 µs to 0.25 s |
| Gain | 0 dB to 42.14 dB |
| Environmental | |
| Temperature (Operating) | -5 °C to 45 °C |
| Temperature (Storage) | -20 °C to 60 °C |
| Humidity (Operating) | 20 % to 80 % (non-condensing) |
| Humidity (Storage) | 20 % to 95 % (non-condensing) |
| Subject to change. | |
 |
Industrial Cameras: Spectral Sensitivity | | 1.30 | Nov 2017 |
 |
Dimensional Diagrams 2.0 for all Industrial Board Cameras | | 2.0 | Oct 2015 |
 |
Datasheet for onsemi AR0234CS CMOS Sensor | | 1.0 | Feb 2023 |
 |
STEP File (dxx32uvr024mlpb) | New | 1.0 | Oct 2024 |
 |
The Imaging Source Catalog | New | 2010.07 | Oct 2024 |
 |

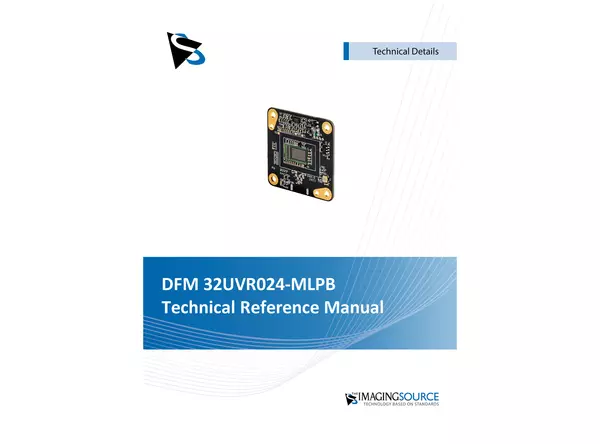

DFM 32UVR024-MLPB Technical Reference Manual | New | 1.0 | Oct 2024 |
 |
