- 32U Series Monochrome Board Camera
- USB 2.0 Interface
- 1/2.5 inch onsemi CMOS AR0521 Sensor
- 2,592×1,944 (5 MP), up to 6 fps
- Pixel Size: H: 2.2 µm, V: 2.2 µm
- Rolling Shutter
- Trigger and I/O Inputs
- Only 30×30×15 mm
- Specification
- Documentation
- Downloads
- Cables
- Optics
| General Behavior | |
| Vision Standard | Compatible with The Imaging Source GenTL Producer for USB3 Vision Cameras |
| Dynamic Range | 12 bit |
| Resolution | 2,592×1,944 (5 MP) |
| Frame Rate | 6 fps |
| Video Output Format | 8-Bit Monochrome, 10-Bit Packed Monochrome, 16-Bit Monochrome |
| Interface (Optical) | |
| Sensor Type | CMOS |
| Sensor Specification | onsemi AR0521 |
| Shutter | Rolling |
| Format | 1/2.5 inch |
| Pixel Size | H: 2.2 µm, V: 2.2 µm |
| Lens Mount | M12x0.5, optional |
| Interface (Electrical) | |
| Interface | USB 2.0 (forwards compatible) |
| Supply Voltage | 4.75 VDC to 5.25 VDC |
| Current Consumption | Approx. 310 mA @ 5 VDC |
| Auto-Iris Control | |
| Trigger | |
| I/O | |
| Interface (Mechanical) | |
| Dimensions | H: 30 mm, W: 30 mm, L: 15 mm |
| Mass | 7 g |
| Adjustments | |
| Shutter | 100 µs to 30 s |
| Gain | 0 dB to 11.81 dB |
| Environmental | |
| Temperature (Operating) | -5 °C to 45 °C |
| Temperature (Storage) | -20 °C to 60 °C |
| Humidity (Operating) | 20 % to 80 % (non-condensing) |
| Humidity (Storage) | 20 % to 95 % (non-condensing) |
| Subject to change. | |
 |
DMM 32UR0521-ML Data Sheet | New | 1.0 | Nov 2024 |
 |

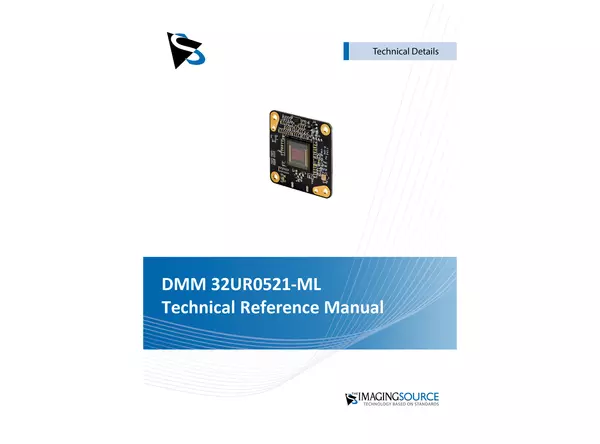

DMM 32UR0521-ML Technical Reference Manual | New | 1.0 | Oct 2024 |
 |
The Imaging Source Catalog | New | 2010.07 | Oct 2024 |
 |
Dimensional Diagrams 2.0 for all Industrial Board Cameras | | 2.0 | Oct 2015 |
 |
Datasheet for onsemi AR0521 CMOS Sensor | | 1.0 | Feb 2023 |
 |
STEP File (dxx32ur0521ml) | New | 1.0 | Oct 2024 |
 |
GenTL Producer for GigE Vision Cameras (Windows / Linux) | New | 1.3.1.860 |  |
Sep 2024 |
 |
GenTL Producer for USB3 Vision Cameras (Windows / Linux) | New | 1.3.1.501 | |
Sep 2024 |
 |
GenTL Producer for Non-GenICam Cameras (BETA) | | 2.0.0.390 | |
Mar 2024 |
 |
Device Driver for USB 33U, 37U, 38U, 32U Cameras and DFG/HDMI Converter | New | 5.2.0.2768 | |
Nov 2024 |
 |
IC Imaging Control 4 SDK (Windows / Linux) | New | 1.2.0.2954 | |
Sep 2024 |
 |
IC Imaging Control C++ Class Library for C++ Projects | | 3.5.7 | |
Dec 2022 |
 |
IC Imaging Control .NET Component for C# and VB.NET Projects | | 3.5.7 | |
Dec 2022 |
 |
IC Imaging Control C Library | | 3.4.0.51 | |
Nov 2017 |
 |
IC Barcode - 1D and 2D Barcode Reader for IC Imaging Control | | 1.1.0.704 | |
Mar 2021 |
 |
IC Barcode for Linux AMD64/x64 | | 1.1.0.703 |  |
Mar 2021 |
 |
IC Barcode for Linux ARM 64 Bit | | 1.1.0.703 | |
Mar 2021 |
 |
tiscamera Camera Library for Ubuntu 18.04 and 22.04 64 Bit on x64 Architecture | | 1.1.0.4139 | |
Apr 2023 |
 |
tiscamera Camera Library for Ubuntu 20.04 64 Bit on x64 Architecture | | 1.1.0.4139 | |
Apr 2023 |
 |
tiscamera Camera Library for ARM 64 Ubuntu 18.04 and 22.04 64 Bit | | 1.1.0.4139 | |
Apr 2023 |
 |
tiscamera Camera Library for ARM 64 Ubuntu 20.04 64 Bit | | 1.1.0.4139 | |
Apr 2023 |
 |
tiscamera Development Package | | 1.1.0.4139 | |
Apr 2023 |
 |
IC Capture - Image Acquisition | | 2.5.1557.4007 | |
May 2023 |
 |
IC Measure - Manual On-Screen Image Measurement and Image Acquisition | | 4.0.0.219 | |
May 2024 |
 |
IC Measure for AMD 64 Linux | | 3.0.0.503 | |
Jun 2023 |
 |
IC Measure for ARM 64 Linux | | 3.0.0.503 | |
Jun 2023 |
 |
tcamdutils for Linux on x64 | | 1.0.0.560 | |
Jun 2022 |
 |
tcamdutils for Linux ARM64 | | 1.0.0.560 | |
Jun 2022 |
 |
tcamdutils-cuda GPU Enhanced Processing on NVIDIA® Tegra | | 1.2.0.397 | |
Jul 2022 |
 |
tcamtegrasrc for MIPI and FPD Link Cameras on NVIDIA® Tegra | | 1.2.0.398 | |
Jul 2022 |
 |
tiscamera Linux 32 Bit Camera Library for ARMHF Architecture | | 1.1.0.4139 | |
Apr 2023 |
 |
tcamdutils 32 Bit for Raspberry PI OS | | 1.0.0.560 | |
Jun 2022 |
 |
Raspberry PI GStreamer Source for The Imaging Source MIPI Cameras | | 1.3.0.662 | |
Jan 2023 |
 |
tcamprop for Raspberry PI OS | | 0.1.0 | |
Mar 2021 |
|
tiscamera Camera Library for Ubuntu 18.04 and 22.04 64 Bit on x64 Architecture | | 1.1.0.4139 | |
Apr 2023 |
|
tiscamera Camera Library for Ubuntu 20.04 64 Bit on x64 Architecture | | 1.1.0.4139 | |
Apr 2023 |
|
tiscamera Camera Library for ARM 64 Ubuntu 18.04 and 22.04 64 Bit | | 1.1.0.4139 | |
Apr 2023 |
|
tiscamera Camera Library for ARM 64 Ubuntu 20.04 64 Bit | | 1.1.0.4139 | |
Apr 2023 |
 |
TWAIN Source for IC Imaging Control | | 3.0.0.144 | |
Feb 2021 |
 |
Cognex VisionPro AIK Plugin for IC Imaging Control | | 3.4.2.0 | |
Jul 2019 |
 |
LabVIEW Extension for IC Imaging Control | | 3.4.0.41 | |
Sep 2019 |
 |
IC Matlab Plugin for Matlab R2013b and Newer Versions | | 3.4.0.58 | |
Nov 2017 |
 |
IC NeuroCheck Driver for NeuroCheck 6.2 | | 1.1.0.122 | |
Jun 2021 |
 |
IC Express - High-Speed Image Capture Into Single Image Files | | 1.1.0.23 | |
Jul 2019 |
 |
Processor Idle State Manager | | 2.2.0.2 | |
Mar 2014 |
 |
Hot Pixel Correction | | 4.0. | |
Jul 2019 |
 |
IC Fullscreen Presenter - Video display on the entire screen | | 1.3.0.0 | |
Jan 2023 |
 |
IC Line Profiler | | 1.1.0.9 | |
Aug 2014 |
 |
Footswitch Software for IC Capture | | 1.0.0.9 | |
Sep 2014 |
 |
Demo Image for NVIDIA® Jetson Nano™ Development Kits | | 1.0.5 | |
Feb 2022 |
 |
Demo Image for NVIDIA® Jetson Xavier NX™ Development Kits | | 1.0.5 | |
Feb 2022 |
 |
Demo Image for Raspberry Pi 4 B Development Kits | | 1.0.0 | |
Mar 2021 |
