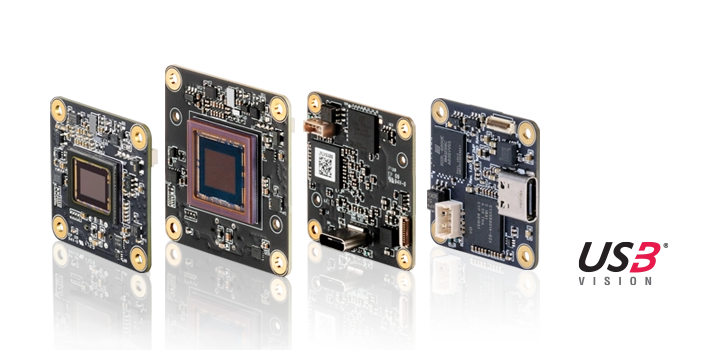

37U Series
USB 3.1 Board Cameras
The Imaging Source's 37 Series board-level cameras provide OEMs with a diverse range of sensor options, making them well-suited to a variety markets and applications. The cameras are USB3 Vision-compliant, offering sensor resolutions ranging from 0.4 MP to an impressive 20 MP. Developers will appreciate the versatile trigger and I/O options, as well as high-contrast images characterized by high dynamic range and exceptional color reproduction.
| Product Code | MP | Resolution | FPS | Format | Sensor | Mono/Color | Shutter | Pixel Size | Trigger | I/O | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
DMM 37UX287-ML | 0.4 MP | 720×540 | 539 | 1/2.9 " | IMX287 |  |
Global | 6.9 µm | | |
|
DMM 37UX273-ML | 1.6 MP | 1,440×1,080 | 238 | 1/2.9 " | IMX273 | |
Global | 3.45 µm | | |
|
DMM 37UX290-ML | 2.1 MP | 1,920×1,080 | 143 | 1/2.8 " | IMX290 | |
Rolling | 2.9 µm | | |
|
DMM 37UR0234-ML | 2.3 MP | 1,920×1,200 | 100 | 1/2.6 " | AR0234CS | |
Global | 3 µm | | |
 |
DMM 37UX252-ML | 3.1 MP | 2,048×1,536 | 119 | 1/1.8 " | IMX252 | |
Global | 3.45 µm | | |
|
DMM 37UX265-ML | 3.1 MP | 2,048×1,536 | 60 | 1/1.8 " | IMX265 | |
Global | 3.45 µm | | |
|
DMM 37UX250-ML | 5 MP | 2,448×2,048 | 75 | 2/3 " | IMX250 | |
Global | 3.45 µm | | |
|
DMM 37UX264-ML | 5 MP | 2,448×2,048 | 38 | 2/3 " | IMX264 | |
Global | 3.45 µm | | |
|
DMM 37UR0521-ML | 5 MP | 2,592×1,944 | 60 | 1/2.5 " | AR0521 | |
Rolling | 2.2 µm | | |
|
DMM 37UX178-ML | 6.3 MP | 3,072×2,048 | 60 | 1/1.8 " | IMX178 | |
Rolling | 2.4 µm | | |
|
DMM 37UX226-ML | 12 MP | 4,000×3,000 | 30 | 1/1.7 " | IMX226 | |
Rolling | 1.85 µm | | |
|
DFM 37UX287-ML | 0.4 MP | 720×540 | 539 | 1/2.9 " | IMX287 |  |
Global | 6.9 µm | | |
|
DFM 37UX273-ML | 1.6 MP | 1,440×1,080 | 238 | 1/2.9 " | IMX273 | |
Global | 3.45 µm | | |
|
DFM 37UX290-ML | 2.1 MP | 1,920×1,080 | 143 | 1/2.8 " | IMX290 | |
Rolling | 2.9 µm | | |
|
DFM 37UX462-ML | 2.1 MP | 1,920×1,080 | 143 | 1/2.8 " | IMX462 | |
Rolling | 2.9 µm | | |
|
DFM 37UR0234-ML | 2.3 MP | 1,920×1,200 | 100 | 1/2.6 " | AR0234CS | |
Global | 3 µm | | |
|
DFM 37UX252-ML | 3.1 MP | 2,048×1,536 | 119 | 1/1.8 " | IMX252 | |
Global | 3.45 µm | | |
|
DFM 37UX265-ML | 3.1 MP | 2,048×1,536 | 60 | 1/1.8 " | IMX265 | |
Global | 3.45 µm | | |
|
DFM 37UX250-ML | 5 MP | 2,448×2,048 | 75 | 2/3 " | IMX250 | |
Global | 3.45 µm | | |
|
DFM 37UX264-ML | 5 MP | 2,448×2,048 | 38 | 2/3 " | IMX264 | |
Global | 3.45 µm | | |
|
DFM 37UR0521-ML | 5 MP | 2,592×1,944 | 60 | 1/2.5 " | AR0521 | |
Rolling | 2.2 µm | | |
|
DFM 37UX178-ML | 6.3 MP | 3,072×2,048 | 60 | 1/1.8 " | IMX178 | |
Rolling | 2.4 µm | | |
|
DFM 37UX226-ML | 12 MP | 4,000×3,000 | 30 | 1/1.7 " | IMX226 | |
Rolling | 1.85 µm | | |
|
Subject to change. |
|||||||||||
Features
- CMOS sensors: CMOS (Global), CMOS (Rolling), CMOS STARVIS (Rolling), CMOS Pregius (Global)
- Resolutions: 0.4 MP - 12 MP
- Frame rates: 30 FPS - 539 FPS
- Interface: USB 3.1 Interface
- Trigger and I/O: Yes
- OEM Cameras: OEM applications and co-branding for customer projects
- Software: The Imaging Source authors and supports device drivers, software development kits (SDKs), end user software, programming samples, extensions, and tools for Microsoft Windows and Linux.
- Warranty: 3-year warranty with continuous support
