- 37U Series Monochrome Board Camera
- USB 3.1 Interface
- 1/2.9 inch Sony CMOS Pregius IMX287 Sensor
- 720×540 (0.4 MP), up to 539 fps
- Pixel Size: H: 6.9 µm, V: 6.9 µm
- Global Shutter
- Trigger and I/O Inputs
- Only 30×30×15 mm
- Specification
- Documentation
- Downloads
- Cables
- Optics
| General Behavior | |
| Vision Standard |  |
| Dynamic Range | 10 bit |
| Resolution | 720×540 (0.4 MP) |
| Frame Rate | 539 fps |
| Video Output Format | 8-Bit Monochrome, 12-Bit Packed Monochrome, 16-Bit Monochrome |
| Interface (Optical) | |
| Sensor Type | CMOS Pregius |
| Sensor Specification | Sony IMX287 |
| Shutter | Global |
| Format | 1/2.9 inch |
| Pixel Size | H: 6.9 µm, V: 6.9 µm |
| Lens Mount | M12x0.5 |
| Interface (Electrical) | |
| Interface | USB 3.1 |
| Supply Voltage | 4.75 VDC to 5.25 VDC |
| Current Consumption | Approx. 380 mA @ 5 VDC |
| Auto-Iris Control | |
| Trigger | |
| I/O | |
| Interface (Mechanical) | |
| Dimensions | H: 30 mm, W: 30 mm, L: 15 mm |
| Mass | 7 g |
| Adjustments | |
| Shutter | 1 µs to 30 s |
| Gain | 0 dB to 48 dB |
| Environmental | |
| Temperature (Operating) | -5 °C to 45 °C |
| Temperature (Storage) | -20 °C to 60 °C |
| Humidity (Operating) | 20 % to 80 % (non-condensing) |
| Humidity (Storage) | 20 % to 95 % (non-condensing) |
| Subject to change. | |
 |
Industrial Cameras: Spectral Sensitivity | | 1.30 | Nov 2017 |
 |
Industrial Cameras: USB - 22, 27, 37, 42 and 72 Series - Trigger and I/O | | 1.6 | Dec 2017 |
 |
Industrial Cameras: Getting Started with USB 3.1 Board Cameras 37 Series | | 1.2 | May 2019 |
 |
Dimensional Diagrams 2.0 for all Industrial Board Cameras | | 2.0 | Oct 2015 |
 |
Datasheet for Sony IMX287LLR CMOS Sensor | | 1.0 | Oct 2017 |
 |
STEP File (dxx37ux287ml) | | 1.0 | May 2019 |
 |
The Imaging Source Catalog | New | 2010.07 | Oct 2024 |
 |

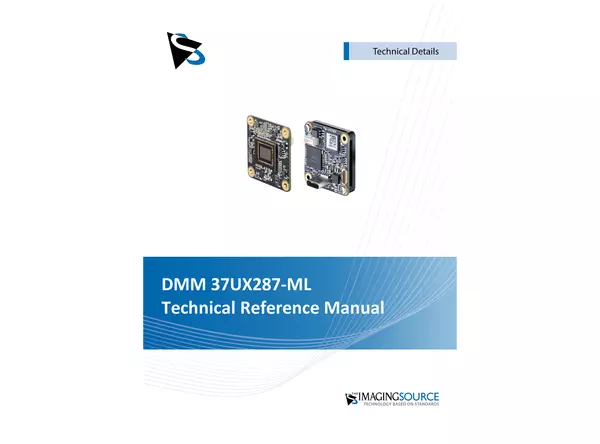

DMM 37UX287-ML Technical Reference Manual | | 1.7 | Apr 2019 |
 |
