- 47G Series Color Board Camera
- GigE Interface (RJ45), PoE
- 1/2.5 inch onsemi CMOS AR0521 Sensor
- 2,592×1,944 (5 MP), up to 22 fps
- Pixel Size: H: 2.2 µm, V: 2.2 µm
- Rolling Shutter
- Trigger and I/O Inputs
- Only 36×38×18 mm
- Specification
- Documentation
- Downloads
- Cables
- Optics
| General Behavior | |
| Dynamic Range | 12 bit |
| Resolution | 2,592×1,944 (5 MP) |
| Frame Rate | 22 fps |
| Video Output Format | 8-Bit Bayer (GR), 12-Bit Bayer Packed (GR), 16-Bit Bayer (GR), YUV 4:2:2, YUV 4:1:1, YUV 4:1:1, RGB24, 8-Bit Monochrome |
| Interface (Optical) | |
| Sensor Type | CMOS |
| Sensor Specification | onsemi AR0521 |
| Shutter | Rolling |
| Format | 1/2.5 inch |
| Pixel Size | H: 2.2 µm, V: 2.2 µm |
| Lens Mount | M12 |
| Interface (Electrical) | |
| Interface | GigE, PoE |
| Supply Voltage | POE: 48 VDC to 56 VDC |
| Power Consumption: | 2.3 W PoE |
| Auto-Iris Control | |
| Trigger | |
| I/O | |
| Interface (Mechanical) | |
| Dimensions | H: 36 mm, W: 38 mm, L: 18 mm |
| Mass | 20 g |
| Adjustments | |
| Shutter | 100 µs to 30 s |
| Gain | 0 dB to 11.81 dB |
| Environmental | |
| Board Temperature (Operating) | 0 °C to 70 °C |
| Temperature (Storage) | -20 °C to 80 °C |
| Humidity (Operating) | 20 % to 80 % (non-condensing) |
| Humidity (Storage) | 20 % to 95 % (non-condensing) |
| Subject to change. | |
 |
DFM 47GR0521-MLP Data Sheet | New | 1.0 | Nov 2024 |
 |

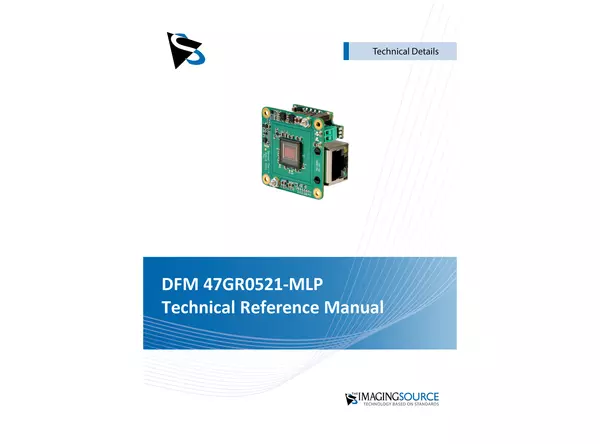

DFM 47GR0521-MLP Technical Reference Manual | New | 1.0 | Oct 2024 |
 |
The Imaging Source Catalog | New | 2010.07 | Oct 2024 |
 |
Datasheet for onsemi AR0521 CMOS Sensor | | 1.0 | Feb 2023 |
 |
STEP File (DxM 47GR0521-MLP) | | 1.0 | Sep 2024 |
 |
