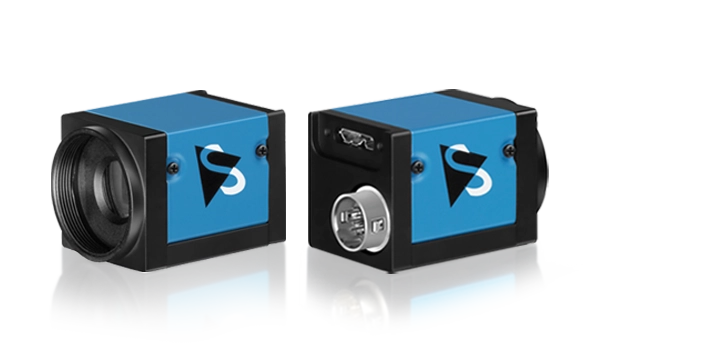

23U Series
Cost Optimized, USB 3.0 Industrial Cameras
The 23U Series industrial cameras deliver a compact, value-driven imaging solution for especially cost sensitive applications.
| Product Code | MP | Resolution | FPS | Format | Sensor | Mono/Color | Shutter | Pixel Size | Trigger | I/O | Auto-Iris | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
DMK 23UV024 | 0.4 MP | 752×480 | 100 | 1/3 " | MT9V024 |  |
Global | 6 µm | | | | EoL* |
|
DMK 23UM021 | 1.2 MP | 1,280×960 | 60 | 1/3 " | MT9M021 | |
Global | 3.75 µm | | | | |
|
DMK 23UP1300 | 1.3 MP | 1,280×1,024 | 95 | 1/2 " | PYTHON 1300 | |
Global | 4.8 µm | | | | |
|
DMK 23U274 | 1.9 MP | 1,600×1,200 | 20 | 1/1.8 " | ICX274AL | |
Global | 4.4 µm | | | | EoL* |
|
DMK 23UX174 | 2.3 MP | 1,920×1,200 | 54 | 1/1.2 " | IMX174LLJ | |
Global | 5.86 µm | | | | |
|
DMK 23UX236 | 2.3 MP | 1,920×1,200 | 54 | 1/2.8 " | IMX236LLJ | |
Rolling | 2.8 µm | | | | |
|
DMK 23UX249 | 2.3 MP | 1,920×1,200 | 30 | 1/1.2 " | IMX249LLJ | |
Global | 5.86 µm | | | | |
|
DMK 23UP031 | 5 MP | 2,592×1,944 | 15 | 1/2.5 " | MT9P031 | |
Rolling | 2.2 µm | | | | EoL* |
|
DFK 23UV024 | 0.4 MP | 752×480 | 100 | 1/3 " | MT9V024 |  |
Global | 6 µm | | | | EoL* |
|
DFK 23UM021 | 1.2 MP | 1,280×960 | 60 | 1/3 " | MT9M021 | |
Global | 3.75 µm | | | | |
|
DFK 23UP1300 | 1.3 MP | 1,280×1,024 | 95 | 1/2 " | PYTHON 1300 | |
Global | 4.8 µm | | | | |
|
DFK 23UX174 | 2.3 MP | 1,920×1,200 | 54 | 1/1.2 " | IMX174LQJ | |
Global | 5.86 µm | | | | |
|
DFK 23UX249 | 2.3 MP | 1,920×1,200 | 30 | 1/1.2 " | IMX249LQJ | |
Global | 5.86 µm | | | | |
|
DFK 23UP031 | 5 MP | 2,592×1,944 | 15 | 1/2.5 " | MT9P006 | |
Rolling | 2.2 µm | | | | EoL* |
|
* End-of-life product. Limited stock available. Subject to change. |
|||||||||||||
Features
- CMOS sensors: CMOS (Global), CMOS Python (Global), CMOS Pregius (Global), CMOS Exmor (Rolling), CCD (Global), CMOS (Rolling)
- Resolutions: 0.4 MP - 5 MP
- Frame rates: 15 FPS - 100 FPS
- Interface: USB 3.0 Interface
- Trigger and I/O: Multiple variants available. Please see table above for details.
- OEM Cameras: OEM applications and co-branding for customer projects
- Software: The Imaging Source authors and supports device drivers, software development kits (SDKs), end user software, programming samples, extensions, and tools for Microsoft Windows and Linux.
- Warranty: 3-year warranty with continuous support
