- 33G Series Color Industrial Camera
- GigE Interface (RJ45)
- 1/2.8 inch Sony CMOS STARVIS IMX290 Sensor
- 1,920×1,080 (2.1 MP), up to 56 fps
- Pixel Size: H: 2.9 µm, V: 2.9 µm
- Rolling Shutter
- Trigger and I/O Inputs
- Only 29×44×57 mm
- Specification
- Documentation
- Downloads
- Cables
- Optics
| General Behavior | |
| Vision Standard |  |
| Dynamic Range | 12 bit |
| Resolution | 1,920×1,080 (2.1 MP) |
| Frame Rate | 56 fps |
| Video Output Format | 8-Bit Bayer (RG), 12-Bit Bayer Packed (RG), 16-Bit Bayer (RG), YUV 4:2:2, YUV 4:1:1, RGB24 |
| Interface (Optical) | |
| IR-Cut Filter | |
| Sensor Type | CMOS STARVIS |
| Sensor Specification | Sony IMX290 |
| Shutter | Rolling |
| Format | 1/2.8 inch |
| Pixel Size | H: 2.9 µm, V: 2.9 µm |
| Lens Mount | C (CS optional) |
| Interface (Electrical) | |
| Interface | Gigabit Ethernet (RJ45) |
| Supply Voltage | 11 VDC to 13 VDC or POE: 48 VDC to 56 VDC |
| Current Consumption | Approx. 400 mA @ 12 VDC |
| Auto-Iris Control | |
| Trigger | |
| I/O | |
| Interface (Mechanical) | |
| Dimensions | H: 29 mm, W: 44 mm, L: 57 mm |
| Mass | 120 g |
| Adjustments | |
| Shutter | 20 µs to 30 s |
| Gain | 0 dB to 72 dB |
| Environmental | |
| Housing Temperature (Operating) | -5 °C to 50 °C |
| Temperature (Storage) | -20 °C to 80 °C |
| Humidity (Operating) | 20 % to 80 % (non-condensing) |
| Humidity (Storage) | 20 % to 95 % (non-condensing) |
| Subject to change. | |
 |
Industrial Cameras: Spectral Sensitivity | | 1.30 | Nov 2017 |
 |
Industrial Cameras: 23/33/Z12/Z30 Series - Trigger and I/O | | 1.6 | Apr 2017 |
 |
Industrial Cameras: GigE Camera Start Up | | 1.0 | Mar 2018 |
 |
Dimensional Diagrams for 27, 33, 33e, 37, 38 Series | | 2.0 | Dec 2017 |
 |
Datasheet for Sony IMX290LQR CMOS Sensor | | 1.0 | Apr 2018 |
 |
STEP File DxK 33Ge CS-Mount (121-15-50) | | 1.0 | Jan 2018 |
 |
STEP File DxK 33Ge C-Mount (121-15-52) | | 1.0 | Jan 2018 |
 |
The Imaging Source Catalog | New | 2010.07 | Oct 2024 |
 |

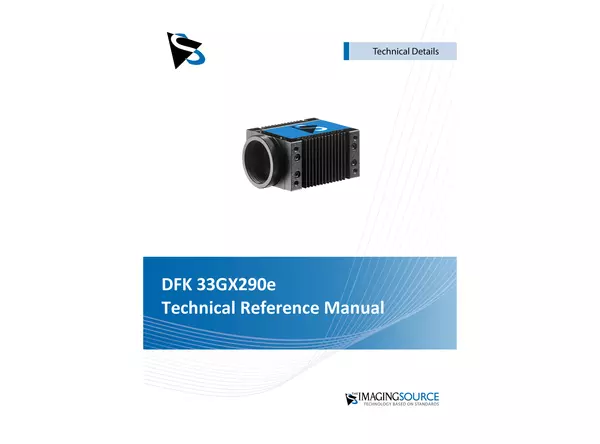

DFK 33GX290e Technical Reference Manual | | 1.2 | Dec 2023 |
 |
