- 33U Series Color Industrial Camera
- USB 3.0 Interface
- 1 inch Sony CMOS Exmor IMX183 Sensor
- 5,472×3,648 (20 MP), up to 18 fps
- Pixel Size: H: 2.4 µm, V: 2.4 µm
- Rolling Shutter
- Trigger and I/O Inputs
- Only 29×29×43 mm
- Specification
- Documentation
- Downloads
- Cables
- Optics
| General Behavior | |
| Vision Standard |  |
| Dynamic Range | 12 bit |
| Resolution | 5,472×3,648 (20 MP) |
| Frame Rate | 18 fps |
| Video Output Format | 8-Bit Monochrome, 8-Bit Bayer (RG), 12-Bit Bayer Packed (RG), 16-Bit Bayer (RG), RGB24, YUV 4:2:2, YUV 4:1:1 |
| Interface (Optical) | |
| IR-Cut Filter | |
| Sensor Type | CMOS Exmor |
| Sensor Specification | Sony IMX183 |
| Shutter | Rolling |
| Format | 1 inch |
| Pixel Size | H: 2.4 µm, V: 2.4 µm |
| Lens Mount | C/CS |
| Interface (Electrical) | |
| Interface | USB 3.0 |
| Supply Voltage | 4.75 VDC to 5.25 VDC |
| Current Consumption | Approx. 660 mA @ 5 VDC |
| Auto-Iris Control | |
| Trigger | |
| I/O | |
| Interface (Mechanical) | |
| Dimensions | H: 29 mm, W: 29 mm, L: 43 mm |
| Mass | 65 g |
| Adjustments | |
| Shutter | 50 µs to 30 s |
| Gain | 0 dB to 27.04 dB |
| Environmental | |
| Housing Temperature (Operating) | -5 °C to 50 °C |
| Temperature (Storage) | -20 °C to 80 °C |
| Humidity (Operating) | 20 % to 80 % (non-condensing) |
| Humidity (Storage) | 20 % to 95 % (non-condensing) |
| Subject to change. | |
 |
Industrial Cameras: Spectral Sensitivity | | 1.30 | Nov 2017 |
 |
Industrial Cameras: 23/33/Z12/Z30 Series - Trigger and I/O | | 1.6 | Apr 2017 |
 |
Dimensional Diagrams for 27, 33, 33e, 37, 38 Series | | 2.0 | Dec 2017 |
 |
STEP File DxK 33U CS-Mount (135-12-01) | | 1.0 | Jan 2018 |
 |
STEP File DxK 33U C-Mount (135-12-02) | | 1.0 | Jan 2018 |
 |
The Imaging Source Catalog | New | 2010.07 | Oct 2024 |
 |

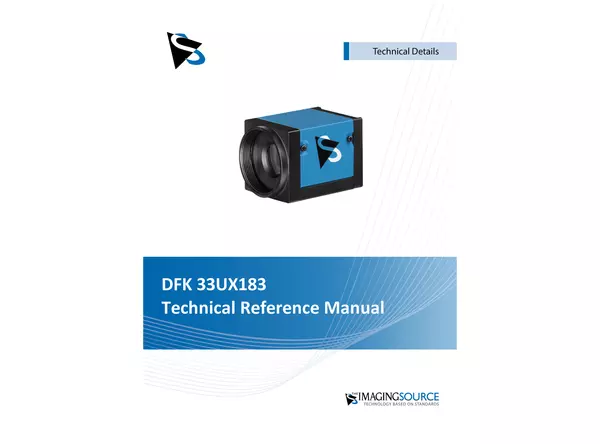

DFK 33UX183 Technical Reference Manual | | 1.1 | Aug 2023 |
 |
