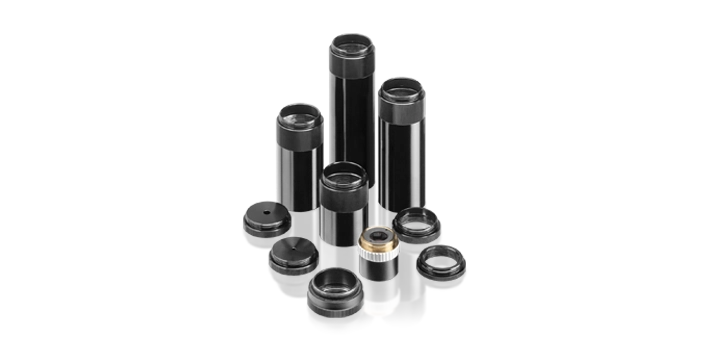

1.1" Macro Lenses

C-Mount Lenses for Close-Up Applications

Robust, low-distortion macro lenses designed for magnification within small fields of view (FOV).

1.1" Macro Lenses
Field of Coverage
Product Code Magnification Working Distance 1/3 " 1/2 " 1/1.8 " 2/3 " 1 " 1.1 " PDF STEP
TMN 0.3/110 0.3 × 110 mm 16 mm 21 mm 25 mm 28 mm 42 mm 47 mm ​ ​
TMN 1.0/50 1 × 50 mm 4.8 mm 6.4 mm 7 mm 9 mm 13 mm 14 mm ​ ​
TMN 1.5/35 1.5 × 35 mm 3.2 mm 4.3 mm 5 mm 6 mm 9 mm 10 mm ​ ​
TMN 2.5/30 2.5 × 30 mm 1.9 mm 2.6 mm 3 mm 3.3 mm 5.1 mm 5.7 mm ​ ​
TMN 3.0/25 3 × 25 mm 1.6 mm 2.1 mm 2.5 mm 2.8 mm 4.2 mm 4.7 mm ​ ​
TMN 4.0/20 4 × 20 mm 1.2 mm 1.6 mm 1.8 mm 2.1 mm 3.2 mm 3.6 mm ​ ​
TMN 6.0/6 6 × 6 mm 0.8 mm 1.1 mm 1.2 mm 1.4 mm 2.1 mm 2.4 mm ​ ​
TMN 8.5/4 8.5 × 4 mm 0.6 mm 0.8 mm 0.8 mm 1 mm 1.5 mm 1.7 mm ​ ​

Subject to change.
