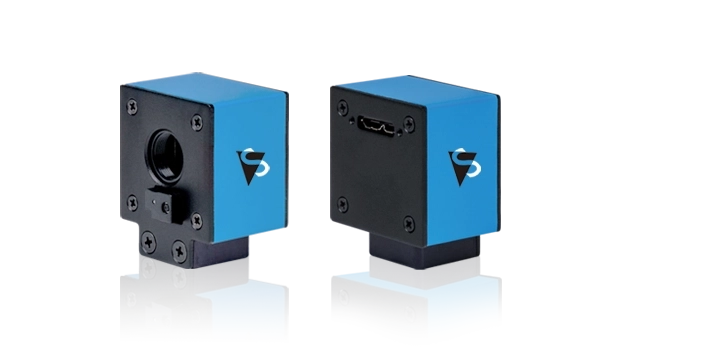

AFU Series
USB 3.0 Autofocus Cameras
For machine vision projects where consistent working distances are difficult to maintain, The Imaging Source provides a range of USB 3.0 autofocus cameras. These cameras utilize software-driven one-push autofocus to capture sharp images, even when working distances vary. The cameras' compact dimensions allow for seamless integration into both new and existing applications.
| Product Code | MP | Resolution | FPS | Format | Sensor | Mono/Color | Shutter | Pixel Size | ||
|---|---|---|---|---|---|---|---|---|---|---|
 |
DMK AFUX236-M12 | 2.3 MP | 1,920×1,200 | 54 | 1/2.8 " | IMX236LLJ |  |
Rolling | 2.8 µm | |
|
DMK AFUP031-M12 | 5 MP | 2,592×1,944 | 15 | 1/2.5 " | MT9P031 | |
Rolling | 2.2 µm | EoL* |
|
DMK AFUX178-M12 | 6.3 MP | 3,072×2,048 | 22 | 1/1.8 " | IMX178LLJ | |
Rolling | 2.4 µm | |
|
DMK AFUJ003-M12 | 10.7 MP | 3,856×2,764 | 7 | 1/2.3 " | MT9J003 | |
Rolling | 1.67 µm | EoL* |
|
DFK AFUP031-M12 | 5 MP | 2,592×1,944 | 15 | 1/2.5 " | MT9P031 |  |
Rolling | 2.2 µm | EoL* |
|
DFK AFUX178-M12 | 6.3 MP | 3,072×2,048 | 22 | 1/1.8 " | IMX178LQJ | |
Rolling | 2.4 µm | |
|
DFK AFUJ003-M12 | 10.7 MP | 3,856×2,764 | 7 | 1/2.3 " | MT9J003 | |
Rolling | 1.67 µm | EoL* |
 |
DFK AFU420-L62 | 41.5 MP | 7,728×5,368 | 7 | 2/3 " | n/a | |
Rolling | 1.12 µm | |
|
* End-of-life product. Limited stock available. Subject to change. |
||||||||||
Features
- CMOS sensors: CMOS (Rolling)
- Resolutions: 2.3 MP - 41.5 MP
- Frame rates: 7 FPS - 54 FPS
- Interface: USB 3.0 Interface
- Trigger and I/O: No
- OEM Cameras: OEM applications and co-branding for customer projects
- Software: The Imaging Source authors and supports device drivers, software development kits (SDKs), end user software, programming samples, extensions, and tools for Microsoft Windows and Linux.
- Warranty: 3-year warranty with continuous support
