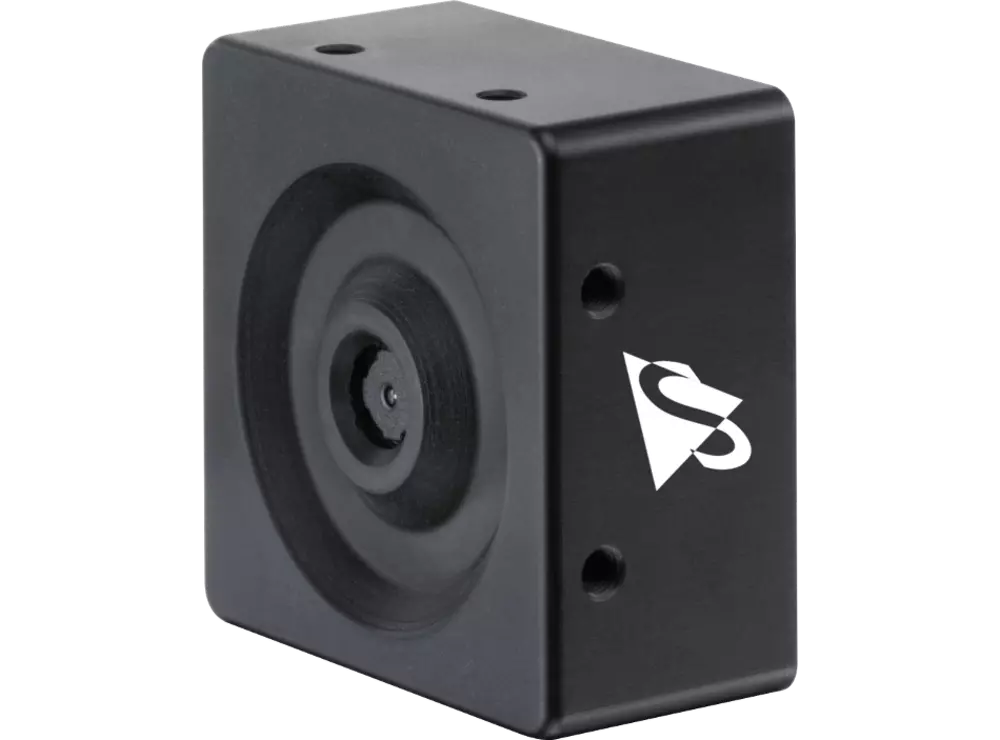

DFK AFU050-L34

AFU Series

​ Get Quotation

  • AFU Series Color Autofocus Camera
  • USB 2.0 Interface, PoE
  • 1/4 inch
  • 2,592×1,944 (5 MP), up to 60 fps
  • Pixel Size: H: 1.4 µm, V: 1.4 µm
  • Rolling Shutter
  • Image Enhancement
  • Only 36×36×18 mm
  • Specification
  • Documentation
  • Downloads
  • Cables
  • Optics
General Behavior
Video Formats @ Frame Rate (maximum) 2,592×1,944 (5 MP) MJPG @ 15 fps
1,920×1,080 (2.1 MP) MJPG @ 30 fps
1,280×720 (0.9 MP) MJPG @ 60 fps
Interface (Optical)
IR-Cut Filter ​
Shutter Rolling
Format 1/4 inch
Pixel Size H: 1.4 µm, V: 1.4 µm
Focus One Touch
Interface (Electrical)
Interface USB 2.0 (forwards compatible), PoE
Supply Voltage 4.5 VDC to 5.5 VDC
Current Consumption Approx. 250 mA @ 5 VDC
Auto-Iris Control ​
Trigger ​
I/O ​
Interface (Mechanical)
Dimensions H: 36 mm, W: 36 mm, L: 18 mm
Mass 65 g
Adjustments
Shutter 1/5,000 s to 1 s
Gain ISO 50 dB to ISO 3200 dB
White Balance Presets: Light Bulb, Daylight Color, Fluorescent Light, Clear Sky, Cloudy Sky, Neutral Color Fluorescent Light and Light Bulb Color Fluorescent Light
Modes: Red Adjustment and Blue Adjustment
Image Processing Modes: Sharpness, Brightness and Contrast
Color Processing Modes: Saturation and Hue
Environmental
Temperature (Operating) -5 °C to 55 °C
Temperature (Storage) -20 °C to 60 °C
Humidity (Operating) 20 % to 80 % (non-condensing)
Humidity (Storage) 20 % to 95 % (non-condensing)
Subject to change.
