DFK 39GR0522-Z12

Z Series

​ Get Quotation

  • Z Series Color Zoom Camera
  • GigE Interface (RJ45)
  • 1/2.5 inch onsemi CMOS AR0522 Sensor
  • Motor Zoom: 5.1 mm to 57.3 mm
  • 2,592×1,944 (5 MP), up to 22 fps
  • Pixel Size: H: 2.2 µm, V: 2.2 µm
  • Rolling Shutter
  • Trigger and I/O Inputs
  • Only 50×50×105 mm
  • Specification

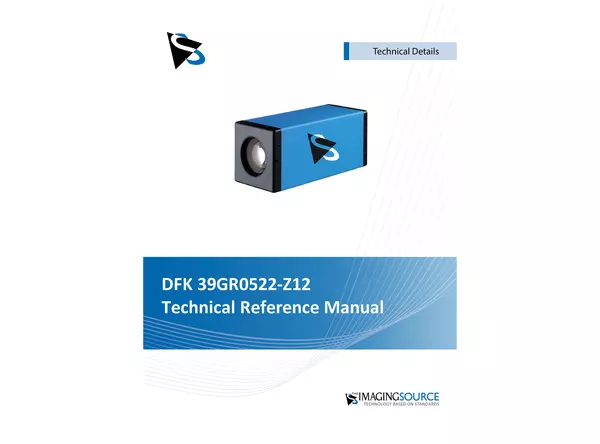

  • Documentation
  • Downloads
  • Cables

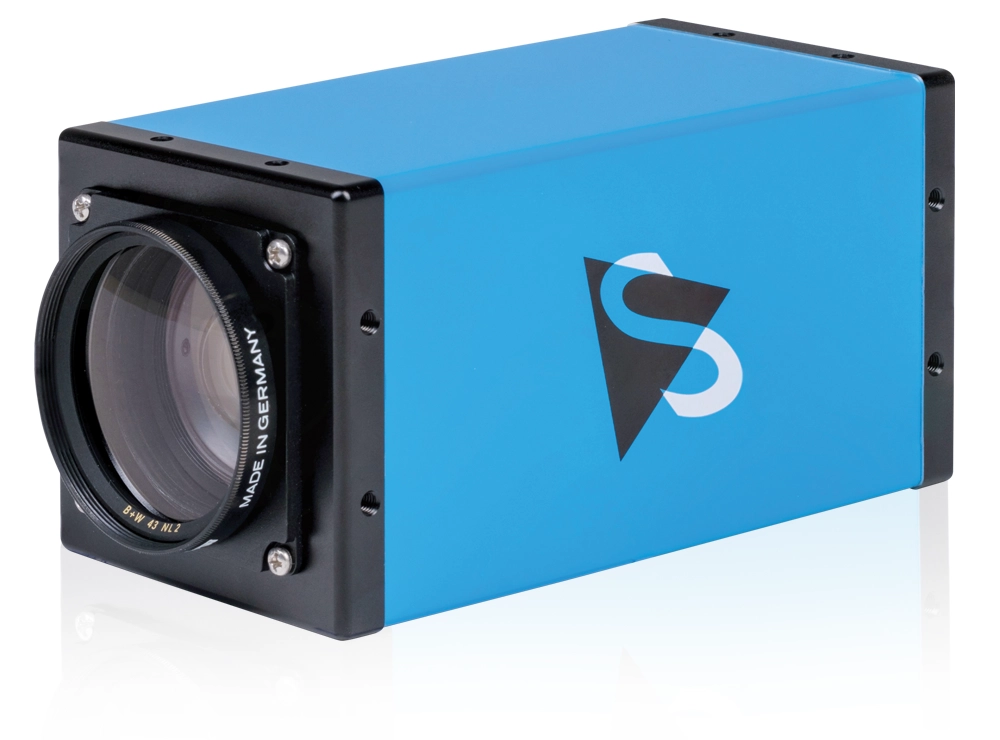

  • Optics
General Behavior
Vision Standard GigE Vision
Dynamic Range 12 bit
Resolution 2,592×1,944 (5 MP)
Frame Rate 22 fps
Video Output Format 8-Bit Monochrome, 8-Bit Bayer (GR), 12-Bit Bayer Packed (GR), 16-Bit Bayer (GR), RGB24, YUV 4:2:2, YUV 4:1:1
Interface (Optical)
IR-Cut Filter ​ (removable)
Sensor Type CMOS
Sensor Specification onsemi AR0522
Shutter Rolling
Format 1/2.5 inch
Pixel Size H: 2.2 µm, V: 2.2 µm
Focal Length 5.1 mm (wide) to 57.3 mm (tele)
F-Stop 1.6 (wide) to 2.8 (tele)
MOD 1 cm (wide) to 50 cm (tele)
Focus Automatic and Manual
Iris Automatic and Manual
Lens Integrated
Interface (Electrical)
Interface Gigabit Ethernet (RJ45)
Supply Voltage 9 VDC to 27 VDC or POE: 48 VDC to 56 VDC
Current Consumption Approx. 400 mA @ 12 VDC
Auto-Iris Control ​
Trigger ​
I/O ​
Interface (Mechanical)
Dimensions H: 50 mm, W: 50 mm, L: 105 mm
Mass 350 g
Adjustments
Shutter 100 µs to 30 s
Gain 0 dB to 11.81 dB
Environmental
Housing Temperature (Operating) -5 °C to 45 °C
Temperature (Storage) -20 °C to 60 °C
Humidity (Operating) 20 % to 80 % (non-condensing)
Humidity (Storage) 20 % to 95 % (non-condensing)
Subject to change.
