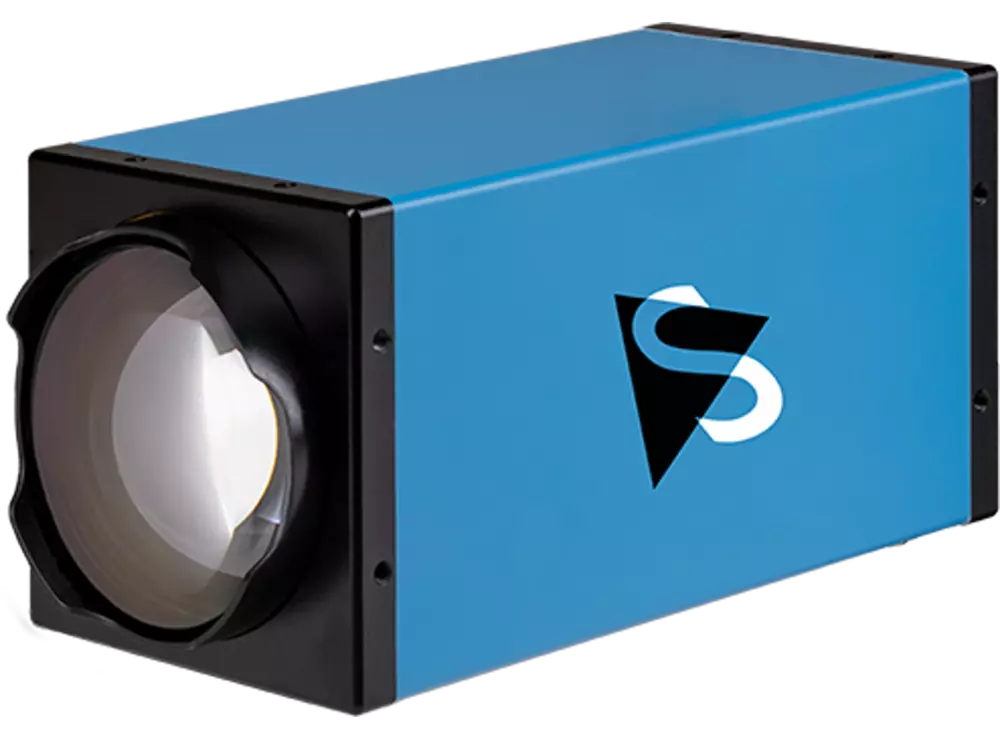

- Z Series Color Zoom Camera
- GigE Interface (RJ45), PoE
- 1/1.8 inch Sony CMOS Pregius IMX265 Sensor
- Motor Zoom: 6.8 mm to 136 mm
- 2,048×1,536 (3.1 MP), up to 36 fps
- Pixel Size: H: 3.45 µm, V: 3.45 µm
- Global Shutter
- Trigger and I/O Inputs
- Only 71×71×147 mm
- Specification
- Documentation
- Downloads
- Cables
- Optics
| General Behavior | |
| Vision Standard |  |
| Dynamic Range | 12 bit |
| Resolution | 2,048×1,536 (3.1 MP) |
| Frame Rate | 36 fps |
| Video Output Format | 8-Bit Bayer (RG), 12-Bit Bayer Packed (RG), 16-Bit Bayer (RG), YUV 4:2:2, YUV 4:1:1, RGB24 |
| Interface (Optical) | |
| IR-Cut Filter | (removable) |
| Sensor Type | CMOS Pregius |
| Sensor Specification | Sony IMX265 |
| Shutter | Global |
| Format | 1/1.8 inch |
| Pixel Size | H: 3.45 µm, V: 3.45 µm |
| Focal Length | 6.8 mm (wide) to 136 mm (tele) |
| F-Stop | 1.5 (wide) to 3.4 (tele) |
| MOD | 1 cm (wide) to 90 cm (tele) |
| Focus | Automatic and Manual |
| Iris | Automatic and Manual |
| Lens | Integrated |
| Interface (Electrical) | |
| Interface | Gigabit Ethernet (RJ45), PoE |
| Supply Voltage | 9 VDC to 27 VDC or POE: 48 VDC to 56 VDC |
| Current Consumption | Approx. 400 mA @ 12 VDC |
| Auto-Iris Control | |
| Trigger | |
| I/O | |
| Interface (Mechanical) | |
| Dimensions | H: 71 mm, W: 71 mm, L: 147 mm |
| Mass | 691 g |
| Adjustments | |
| Shutter | 20 µs to 30 s |
| Gain | 0 dB to 48 dB |
| Environmental | |
| Housing Temperature (Operating) | -5 °C to 45 °C |
| Temperature (Storage) | -20 °C to 60 °C |
| Humidity (Operating) | 20 % to 80 % (non-condensing) |
| Humidity (Storage) | 20 % to 95 % (non-condensing) |
| Subject to change. | |
 |
DFK 39GX265-Z20 Data Sheet | New | 1.0 | Nov 2024 |
 |

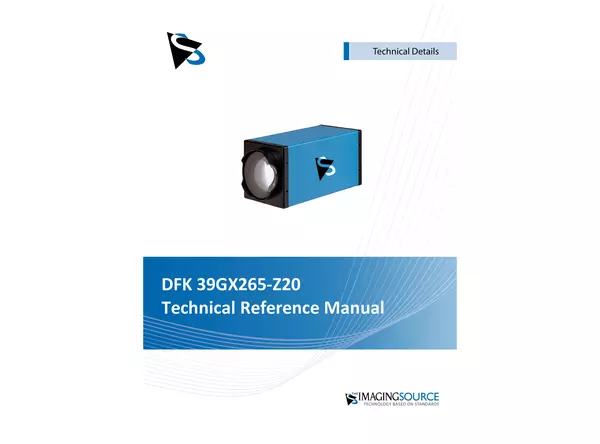

DFK 39GX265-Z20 Technical Reference Manual | | 1.1 | Aug 2023 |
 |
The Imaging Source Catalog | New | 2010.07 | Oct 2024 |
 |
Datasheet for Sony IMX265LQR CMOS Sensor | | 1.0 | Apr 2018 |
 |
