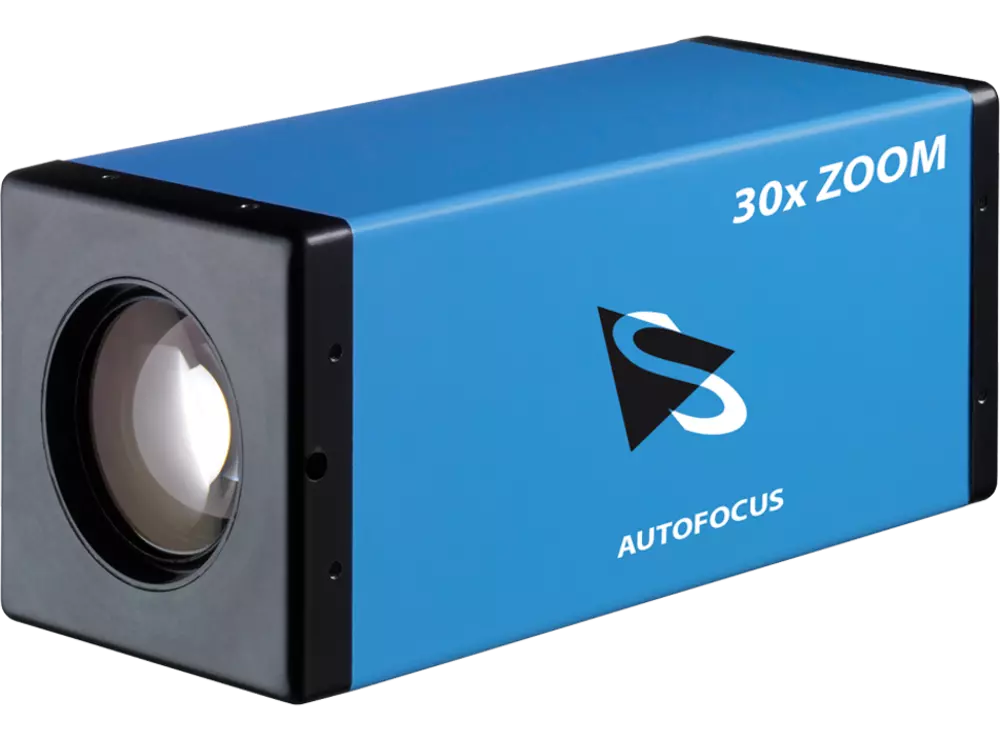

DFK Z30GP031

Z Series

​ Get Quotation

  • Z Series Color Zoom Camera
  • GigE Interface (RJ45), PoE
  • 1/2.5 inch onsemi CMOS MT9P031 Sensor
  • Motor Zoom: 4.3 mm to 129 mm
  • 2,592×1,944 (5 MP), up to 15 fps
  • Pixel Size: H: 2.2 µm, V: 2.2 µm
  • Rolling Shutter
  • Trigger and I/O Inputs
  • Only 60×60×116 mm
  • Specification
  • Documentation
  • Downloads
  • Cables
  • Optics
General Behavior
Dynamic Range 8/12 bit
Video Formats @ Frame Rate (maximum) 2,592×1,944 (5 MP) RGB32 @ 15 fps
2,592×1,944 (5 MP) Y800 @ 15 fps
2,592×1,944 (5 MP) Y16 @ 15 fps
Interface (Optical)
IR-Cut Filter ​
Sensor Type CMOS
Sensor Specification ​ onsemi MT9P031
Shutter Rolling
Format 1/2.5 inch
Pixel Size H: 2.2 µm, V: 2.2 µm
Focal Length 4.3 mm (wide) to 129 mm (tele)
F-Stop 1.6 (wide) to 1.6 (tele)
MOD 3 cm (wide) to 400 cm (tele)
Focus Automatic and Manual
Iris Automatic and Manual
Lens Integrated
Interface (Electrical)
Interface GigE, PoE
Supply Voltage 11 VDC to 13 VDC or POE: 48 VDC to 56 VDC
Current Consumption Approx. 600 mA @ 12 VDC
Auto-Iris Control ​
Trigger ​
I/O ​
Interface (Mechanical)
Dimensions H: 60 mm, W: 60 mm, L: 116 mm
Mass 330 g
Adjustments
Shutter 1/20,000 s to 30 s
Gain 0 dB to 12 dB
White Balance -2 dB to 6 dB
Environmental
Temperature (Operating) -5 °C to 45 °C
Temperature (Storage) -20 °C to 60 °C
Humidity (Operating) 20 % to 80 % (non-condensing)
Humidity (Storage) 20 % to 95 % (non-condensing)
Subject to change.
