- Z Series Monochrome Zoom Camera
- GigE Interface (RJ45), PoE
- 1/2.5 inch onsemi CMOS AR0522 Sensor
- Motor Zoom: 5.1 mm to 57.3 mm
- 2,592×1,944 (5 MP), up to 22 fps
- Pixel Size: H: 2.2 µm, V: 2.2 µm
- Rolling Shutter
- Trigger and I/O Inputs
- Only 50×50×105 mm
- Specification
- Documentation
- Downloads
- Cables
- Optics
| General Behavior | |
| Vision Standard |  |
| Dynamic Range | 12 bit |
| Resolution | 2,592×1,944 (5 MP) |
| Frame Rate | 22 fps |
| Video Output Format | 8-Bit Monochrome, 12-Bit Packed Monochrome, 16-Bit Monochrome |
| Interface (Optical) | |
| IR-Cut Filter | (removable) |
| Sensor Type | CMOS |
| Sensor Specification | onsemi AR0522 |
| Shutter | Rolling |
| Format | 1/2.5 inch |
| Pixel Size | H: 2.2 µm, V: 2.2 µm |
| Focal Length | 5.1 mm (wide) to 57.3 mm (tele) |
| F-Stop | 1.6 (wide) to 2.8 (tele) |
| MOD | 1 cm (wide) to 50 cm (tele) |
| Focus | Automatic and Manual |
| Iris | Automatic and Manual |
| Lens | Integrated |
| Interface (Electrical) | |
| Interface | Gigabit Ethernet (RJ45), PoE |
| Supply Voltage | 9 VDC to 27 VDC or POE: 48 VDC to 56 VDC |
| Current Consumption | Approx. 400 mA @ 12 VDC |
| Auto-Iris Control | |
| Trigger | |
| I/O | |
| Interface (Mechanical) | |
| Dimensions | H: 50 mm, W: 50 mm, L: 105 mm |
| Mass | 350 g |
| Adjustments | |
| Shutter | 100 µs to 30 s |
| Gain | 0 dB to 11.81 dB |
| Environmental | |
| Housing Temperature (Operating) | -5 °C to 45 °C |
| Temperature (Storage) | -20 °C to 60 °C |
| Humidity (Operating) | 20 % to 80 % (non-condensing) |
| Humidity (Storage) | 20 % to 95 % (non-condensing) |
| Subject to change. | |
 |
DMK 39GR0522-Z12 Data Sheet | New | 1.0 | Nov 2024 |
 |

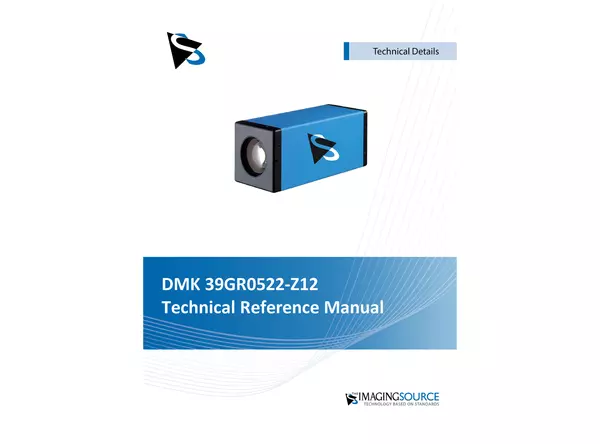

DMK 39GR0522-Z12 Technical Reference Manual | | 1.0 | Jan 2024 |
 |
