FireWire Cables, PSUs and Interface Boards - Part 3
Published on October 29, 2008 by TIS Marketing.
Please Note: This blog post is part of a series of five posts altogether. The posts include: Part 1, Part 2, Part 3, Part 4 and Part 5.

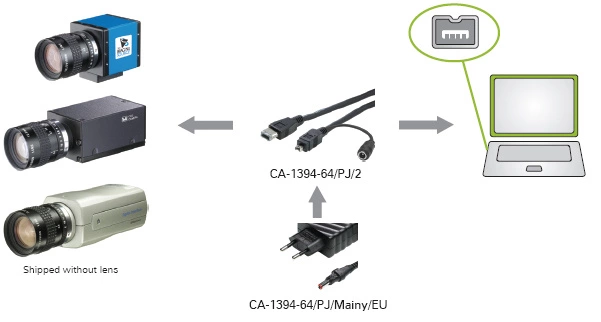

Connecting laptops with a 4-pin FireWire interface, using a Y-cable
Since 4-pin FireWire cable is unable to supply cameras with the power, you will need:
- a Y-cable (CA-1394-64/PJ/2) to connect the computer, camera and the power
- a power supply (CA-1394-64/PJ/Mainy/EU for Europe and CA-1394-64/PJ/Mainy/US for US)
to have the camera run on the laptop.

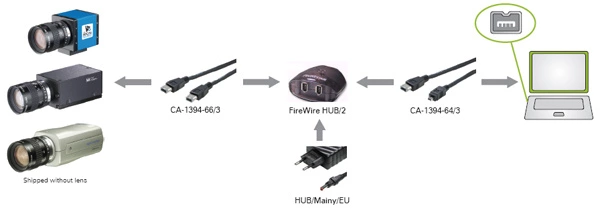

Supplying the cameras via a hub
Another way to have a FireWire camera working on such a laptop is via a FireWire hub. To do so, you need:
- a FireWire hub (FireWire HUB/2)
- a 6-pin to 6-pin FireWire cable (CA-1394-66/3) to connect the camera and the hub
- a 6-pin to 4-pin FireWire cable (CA-1394-64/3) to connect the laptop and the hub
- a power supply (CA-1394-64/PJ/Mainy/EU for Europe and CA-1394-64/PJ/Mainy/US for US)
And then round them up like the picture above.
