| 特性概要 | |
| 视觉标准 |  |
| 动态范围 | 12 bit |
| 分辨率 | 2,592×1,944 (5 MP) |
| 帧率 | 60 fps |
| 视频输出格式 | 8-Bit Bayer (GR), 10-Bit Bayer Packed (GR), 16-Bit Bayer (GR) |
| 接口 (光学) | |
| 传感器类型 | CMOS |
| 传感器规格 | onsemi AR0521 |
| 快门 | 卷帘 |
| 规格 | 1/2.5 inch |
| 像素 | 水平: 2.2 µm, 垂直: 2.2 µm |
| 镜头接口 | M12x0.5 |
| 接口 (电子) | |
| 接口 | USB 3.1 |
| 供应电压 | 4.75 VDC 至 5.25 VDC |
| 消耗电流 | 大约 tbd mA @ 5 VDC |
| 自动光圈控制 | |
| 触发器 | |
| 输入/输出 | |
| 接口 (机械) | |
| 尺寸 | 高: 30 mm, 宽: 30 mm, 长: 15 mm |
| 重量 | 7 g |
| 调整 | |
| 快门 | 100 µs 至 30 s |
| 增益 | 0 dB 至 9.75 dB |
| 环境 | |
| 温度 (作业) | -5 °C 至 45 °C |
| 温度 (储存) | -20 °C 至 60 °C |
| 湿度 (作业) | 20 % 至 80 % (非冷凝) |
| 湿度 (储存) | 20 % 至 95 % (非冷凝) |
| 依实际情形调整更动 | |
 |
Industrial Cameras: Spectral Sensitivity | | 1.30 | 11月 2017 |
 |
Industrial Cameras: USB - 22, 27, 37, 42 and 72 Series - Trigger and I/O | | 1.6 | 12月 2017 |
 |
Industrial Cameras: Getting Started with USB 3.1 Board Cameras 37 Series | | 1.2 | 5月 2019 |
 |
Dimensional Diagrams 2.0 for all Industrial Board Cameras | | 2.0 | 10月 2015 |
 |
Datasheet for onsemi AR0521 CMOS Sensor | | 1.0 | 2月 2023 |
 |
The Imaging Source Catalog | 新的 | 2010.07 | 10月 2024 |
 |

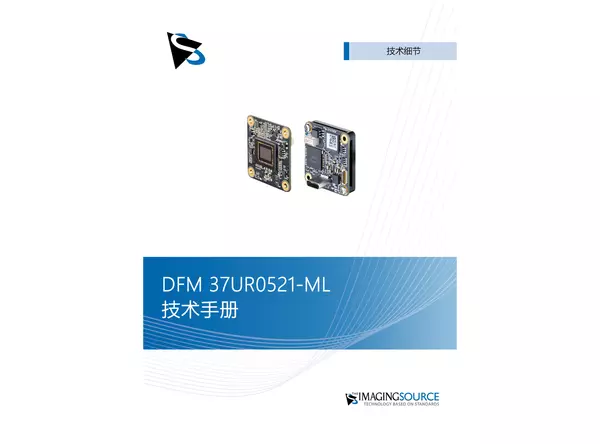

DFM 37UR0521-ML 技术手册 | | 1.1 | 12月 2023 |
 |
