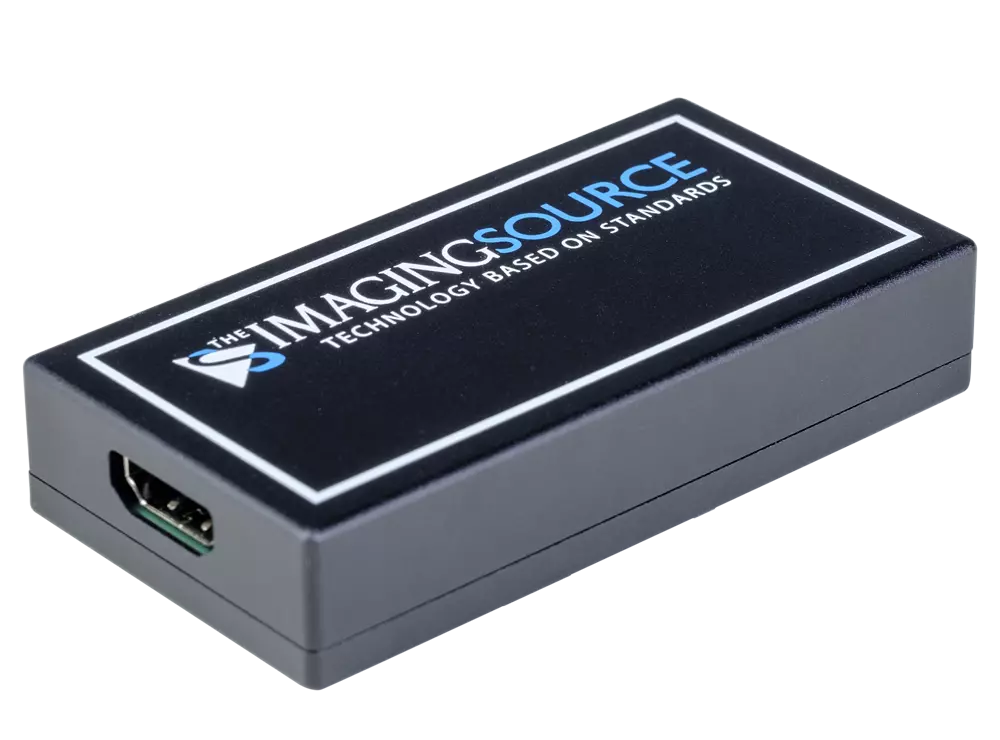

- HDMI-to-USB 3.1 视频信号转换器
- USB 3.1 接口, 乙太网路供电
- 4,096×2,160 (8.8 MP), 最高 60 fps
- 仅 13×43×83 mm
- 技术规格
- 文件
- 下载
- 数据线
- 光学
| 特性概要 | |
| 视觉标准 |  |
| 视频格式 @ 帧率 (最大) | 1,920×1,080 (2.1 MP) YUY2 @ 60 fps 3,840×2,160 (8.3 MP) Y411 @ 30 fps 4,096×2,160 (8.8 MP) Bayer8 @ 30 fps |
| 视频标准 | HDMI |
| 输入 | HDMI: 1 输入 |
| tc_color_format | RGB24, YUY2, Y411, Y800 及 Bayer8 |
| 接口 (电子) | |
| 接口 | USB 3.1, Type C (向前兼容), 乙太网路供电 |
| 供应电压 | 4.75 VDC 至 5.25 VDC |
| 消耗电流 | 大约 500 mA @ 5 VDC |
| 接口 (机械) | |
| 尺寸 | 高: 13 mm, 宽: 43 mm, 长: 83 mm |
| 重量 | 101 g |
| 环境 | |
| 温度 (作业) | 0 °C 至 45 °C |
| 温度 (储存) | -20 °C 至 60 °C |
| 湿度 (作业) | 20 % 至 80 % (非冷凝) |
| 湿度 (储存) | 20 % 至 95 % (非冷凝) |
| 依实际情形调整更动 | |
 |
