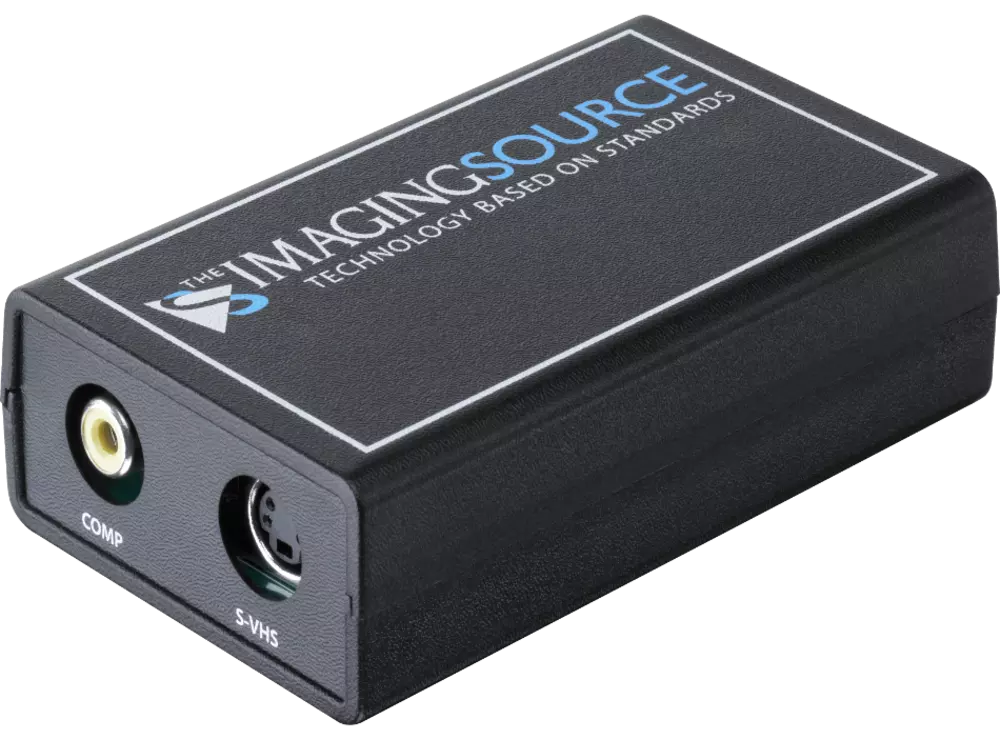

- Video-to-USB 2.0 视频信号转换器
- 768×576 (0.4 MP), 最高 30 fps
- 仅 27×56×95.8 mm
- 技术规格
- 文件
- 下载
- 数据线
- 光学
| 特性概要 | |
| 视频格式 @ 帧率 (最大) | PAL: 768×576 (0.4 MP) @ 25 fps NTSC: 640×480 (0.3 MP) @ 30 fps |
| 视频标准 | PAL/NTSC 及 RS-170/CCIR |
| 模拟输入 | RCA (Cinch): 1 输入 Y/C (S-Video): 1 输入 |
| 总线接口 | USB 2.0, Type B |
| tc_color_format | UYVY 及 Y800 |
| 方形像素 | |
| 接口 (电子) | |
| 供应电压 | 4.75 VDC 至 5.25 VDC |
| 消耗电流 | 大约 200 mA @ 5 VDC |
| 接口 (机械) | |
| 尺寸 | 高: 27 mm, 宽: 56 mm, 长: 95.8 mm |
| 重量 | 100 g |
| 调整 | |
| 增益 | 0 dB 至 48 dB |
| 环境 | |
| 温度 (作业) | 0 °C 至 45 °C |
| 温度 (储存) | -20 °C 至 60 °C |
| 湿度 (作业) | 20 % 至 80 % (非冷凝) |
| 湿度 (储存) | 20 % 至 95 % (非冷凝) |
| 依实际情形调整更动 | |
 |
