- 33U 系列 彩色工业相机
- USB 3.0 接口
- 2/3 inch Sony CMOS Pregius Polarsens IMX250MYR 传感器规格
- 2,448×2,048 (5 MP), 最高 75 fps
- 像素: 水平: 3.45 µm, 垂直: 3.45 µm
- 全局快门
- 触发器和 I/O 输入
- 仅 29×29×43 mm
- 技术规格
- 文件
- 下载
- 数据线
- 光学
| 特性概要 | |
| 视觉标准 |  |
| 动态范围 | 12 bit |
| 分辨率 | 2,448×2,048 (5 MP) |
| 帧率 | 75 fps |
| 视频输出格式 | 8-Bit Polarized Bayer (BG), 12-Bit Polarized Bayer Packed (BG), 16-Bit Polarized Bayer (BG) |
| 接口 (光学) | |
| 红外截止滤光片 | |
| 传感器类型 | CMOS Pregius Polarsens |
| 传感器规格 | Sony IMX250MYR |
| 快门 | 全局 |
| 规格 | 2/3 inch |
| 像素 | 水平: 3.45 µm, 垂直: 3.45 µm |
| 镜头接口 | C/CS |
| 接口 (电子) | |
| 接口 | USB 3.0 |
| 供应电压 | 4.75 VDC 至 5.25 VDC |
| 消耗电流 | 大约 800 mA @ 5 VDC |
| 自动光圈控制 | |
| 触发器 | |
| 输入/输出 | |
| 接口 (机械) | |
| 尺寸 | 高: 29 mm, 宽: 29 mm, 长: 43 mm |
| 重量 | 65 g |
| 调整 | |
| 快门 | 1 µs 至 4 s |
| 增益 | 0 dB 至 48 dB |
| 环境 | |
| 外壳温度 (工作) | -5 °C 至 50 °C |
| 温度 (储存) | -20 °C 至 80 °C |
| 湿度 (作业) | 20 % 至 80 % (非冷凝) |
| 湿度 (储存) | 20 % 至 95 % (非冷凝) |
| 依实际情形调整更动 | |
 |
Polarization-based Industrial Cameras: Basics and Applications | | 1.1 | 10月 2019 |
 |
Industrial Cameras: Spectral Sensitivity | | 1.30 | 11月 2017 |
 |
Industrial Cameras: 23/33/Z12/Z30 Series - Trigger and I/O | | 1.6 | 4月 2017 |
 |
Dimensional Diagrams for 27, 33, 33e, 37, 38 Series | | 2.0 | 12月 2017 |
 |
STEP File DxK 33U CS-Mount (135-12-01) | | 1.0 | 1月 2018 |
 |
STEP File DxK 33U C-Mount (135-12-02) | | 1.0 | 1月 2018 |
 |
The Imaging Source Catalog | 新的 | 2010.07 | 10月 2024 |
 |

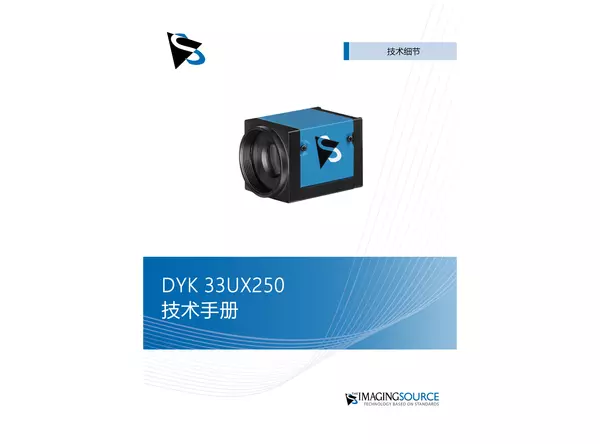

DYK 33UX250 技术手册 | | 1.1 | 8月 2023 |
 |
