| 特性概要 | |
| 视觉标准 |  |
| 动态范围 | 12 bit |
| 分辨率 | 4,096×2,160 (8.8 MP) |
| 帧率 | 13 fps |
| 视频输出格式 | 8-Bit Bayer (RG), 12-Bit Bayer Packed (RG), 16-Bit Bayer (RG), YUV 4:2:2, YUV 4:1:1 |
| 接口 (光学) | |
| 红外截止滤光片 | |
| 传感器类型 | CMOS Pregius |
| 传感器规格 | Sony IMX267 |
| 快门 | 全局 |
| 规格 | 1 inch |
| 像素 | 水平: 3.45 µm, 垂直: 3.45 µm |
| 镜头接口 | C (CS可选) |
| 接口 (电子) | |
| 接口 | Gigabit Ethernet (RJ45) |
| 供应电压 | 9 VDC 至 27 VDC 或乙太网路供电 48 VDC 至 56 VDC |
| 消耗电流 | 大约 400 mA @ 12 VDC |
| 自动光圈控制 | |
| 触发器 | |
| 输入/输出 | |
| 接口 (机械) | |
| 尺寸 | 高: 29 mm, 宽: 44 mm, 长: 75 mm |
| 重量 | 165 g |
| 调整 | |
| 快门 | 2 µs 至 4 s |
| 增益 | 0 dB 至 48 dB |
| 环境 | |
| 外壳温度 (工作) | -5 °C 至 50 °C |
| 温度 (储存) | -20 °C 至 80 °C |
| 湿度 (作业) | 20 % 至 80 % (非冷凝) |
| 湿度 (储存) | 20 % 至 95 % (非冷凝) |
| 依实际情形调整更动 | |
 |
Industrial Cameras: Spectral Sensitivity | | 1.30 | 11月 2017 |
 |
Industrial Cameras: GigE Camera Start Up | | 1.0 | 3月 2018 |
 |
Dimensional Diagrams for 27, 33, 33e, 37, 38 Series | | 2.0 | 12月 2017 |
 |
Datasheet for Sony IMX267LQR CMOS Sensor | | 1.0 | 4月 2018 |
 |
STEP File DxK 38G-a CS-Mount (205-16-30) | | 1.0 | 4月 2023 |
 |
STEP File DxK 38G-a C-Mount (205-16-32) | | 1.0 | 4月 2023 |
 |
The Imaging Source Catalog | 新的 | 2010.07 | 10月 2024 |
 |

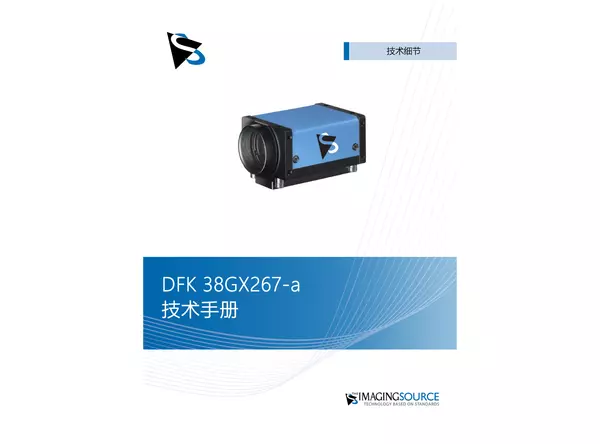

DFK 38GX267-a 技术手册 | | 1.2 | 12月 2023 |
 |
