| 特性概要 | |
| 動態範圍 | 12 bit |
| 解析度 | 1,920×1,080 (2.1 MP) |
| 幀率 | 120 fps |
| 視訊輸出格式 | 10-Bit Monochrome, 12-Bit Monochrome |
| 介面 (光學) | |
| 感測器類型 | CMOS STARVIS |
| 感測器規格 | Sony IMX290 |
| 快門 | 捲簾 |
| 規格 | 1/2.8 inch |
| 畫素 | 水平: 2.9 µm, 垂直: 2.9 µm |
| 鏡頭接口 | M12x0.5, 可選 |
| 介面 (電子) | |
| 介面 | 22-pin FFC connector |
| 供應電壓 | 3.15 VDC 至 3.45 VDC |
| 消耗電流 | 大約 190 mA @ 3.3 VDC |
| 自動光圈控制 | |
| 觸發器 | |
| 輸入/輸出 | |
| 介面 (機械) | |
| 尺寸 | 高: 30 mm, 寬: 30 mm, 長: 6 mm |
| 重量 | 4 g |
| 調整 | |
| 快門 | 15 µs 至 1 s |
| 增益 | 0 dB 至 72 dB |
| 環境 | |
| tc_temperature_operatingboard_brackets | -30 °C 至 85 °C |
| 溫度 (儲存) | -40 °C 至 85 °C |
| 濕度 (作業) | 20 % 至 80 % (非冷凝) |
| 濕度 (儲存) | 20 % 至 95 % (非冷凝) |
| 依實際情形調整更動 | |
 |
Industrial Cameras: Spectral Sensitivity | | 1.30 | 11月 2017 |
 |

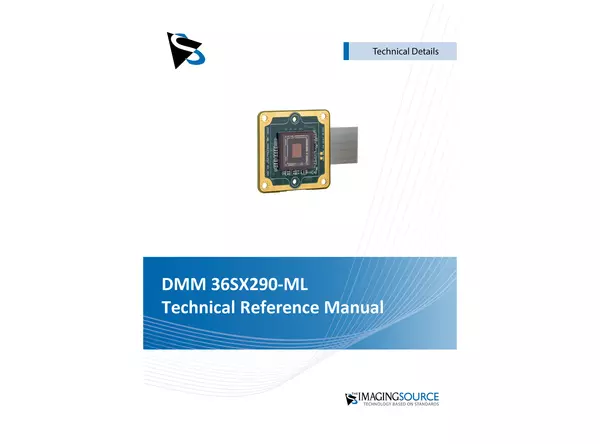

DMM 36SX290-ML Technical Reference Manual | 新的 | 1.2 | 12月 2024 |
 |
