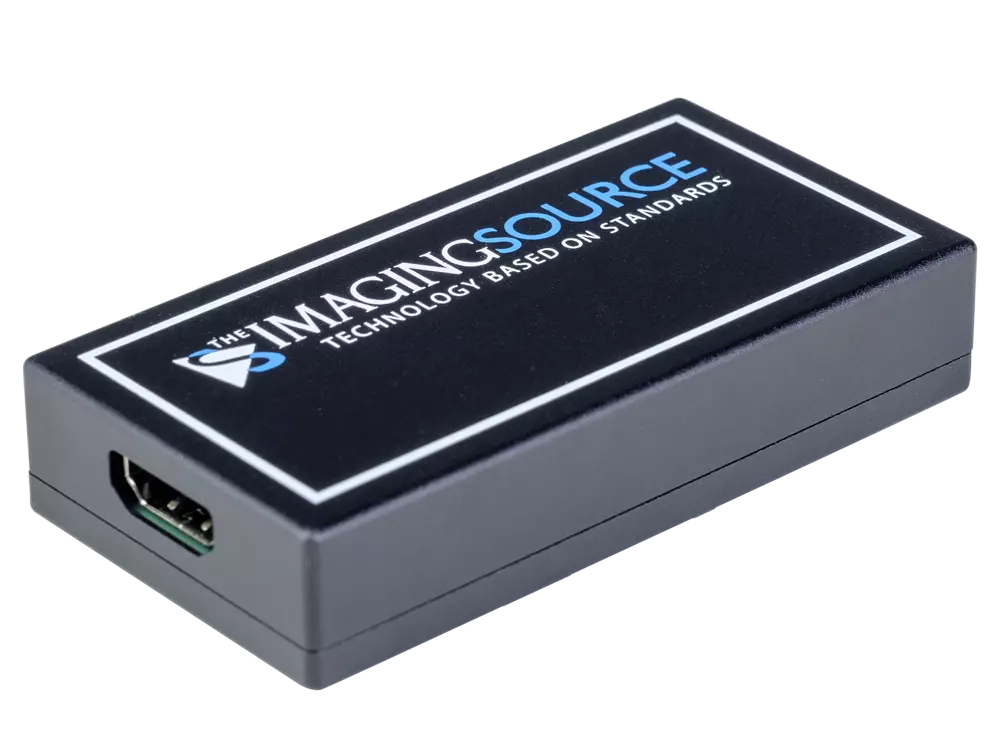

- HDMI-to-USB 3.1 視頻信號轉換器
- USB 3.1 介面, 乙太網路供電
- 4,096×2,160 (8.8 MP), 最高 60 fps
- 僅 13×43×83 mm
- 技術規格
- 文件
- 下載
- 數據線
- 光學
| 特性概要 | |
| 視覺標準 |  |
| 視訊格式 @ 幀率 (最大) | 1,920×1,080 (2.1 MP) YUY2 @ 60 fps 3,840×2,160 (8.3 MP) Y411 @ 30 fps 4,096×2,160 (8.8 MP) Bayer8 @ 30 fps |
| 視訊標準 | HDMI |
| 輸入 | HDMI: 1 輸入 |
| tc_color_format | RGB24, YUY2, Y411, Y800 及 Bayer8 |
| 介面 (電子) | |
| 介面 | USB 3.1, Type C (正向相容), 乙太網路供電 |
| 供應電壓 | 4.75 VDC 至 5.25 VDC |
| 消耗電流 | 大約 500 mA @ 5 VDC |
| 介面 (機械) | |
| 尺寸 | 高: 13 mm, 寬: 43 mm, 長: 83 mm |
| 重量 | 101 g |
| 環境 | |
| 溫度 (作業) | 0 °C 至 45 °C |
| 溫度 (儲存) | -20 °C 至 60 °C |
| 濕度 (作業) | 20 % 至 80 % (非冷凝) |
| 濕度 (儲存) | 20 % 至 95 % (非冷凝) |
| 依實際情形調整更動 | |
 |
