| 特性概要 | |
| 視覺標準 |  |
| 動態範圍 | 12 bit |
| 解析度 | 3,856×2,764 (10.7 MP) |
| 幀率 | 11 fps |
| 視訊輸出格式 | 8-Bit Bayer (GR), 16-Bit Bayer (GR), 12-Bit Bayer Packed (GR), YUV 4:2:2, YUV 4:1:1, RGB24 |
| 介面 (光學) | |
| 紅外截止濾光片 | |
| 感測器類型 | CMOS |
| 感測器規格 | onsemi MT9J003 |
| 快門 | 捲簾 |
| 規格 | 1/2.3 inch |
| 畫素 | 水平: 1.67 µm, 垂直: 1.67 µm |
| 鏡頭接口 | C (CS可選) |
| 介面 (電子) | |
| 介面 | Gigabit Ethernet (RJ45) |
| 供應電壓 | 11 VDC 至 13 VDC 或乙太網路供電 48 VDC 至 56 VDC |
| 消耗電流 | 大約 400 mA @ 12 VDC |
| 自動光圈控制 | |
| 觸發器 | |
| 輸入/輸出 | |
| 介面 (機械) | |
| 尺寸 | 高: 29 mm, 寬: 44 mm, 長: 57 mm |
| 重量 | 120 g |
| 調整 | |
| 快門 | 100 µs 至 30 s |
| 增益 | 0 dB 至 5.83 dB |
| 環境 | |
| 外殼溫度 (工作) | -5 °C 至 50 °C |
| 溫度 (儲存) | -20 °C 至 80 °C |
| 濕度 (作業) | 20 % 至 80 % (非冷凝) |
| 濕度 (儲存) | 20 % 至 95 % (非冷凝) |
| 依實際情形調整更動 | |
 |
Industrial Cameras: Spectral Sensitivity | | 1.30 | 11月 2017 |
 |
Industrial Cameras: 23/33/Z12/Z30 Series - Trigger and I/O | | 1.6 | 4月 2017 |
 |
Industrial Cameras: GigE Camera Start Up | | 1.0 | 3月 2018 |
 |
Dimensional Diagrams for 27, 33, 33e, 37, 38 Series | | 2.0 | 12月 2017 |
 |
Datasheet for onsemi MT9J003 CMOS Sensor | | 1.1 | 10月 2015 |
 |
STEP File DxK 33Ge CS-Mount (121-15-50) | | 1.0 | 1月 2018 |
 |
STEP File DxK 33Ge C-Mount (121-15-52) | | 1.0 | 1月 2018 |
 |
The Imaging Source Catalog | 新的 | 2010.07 | 10月 2024 |
 |

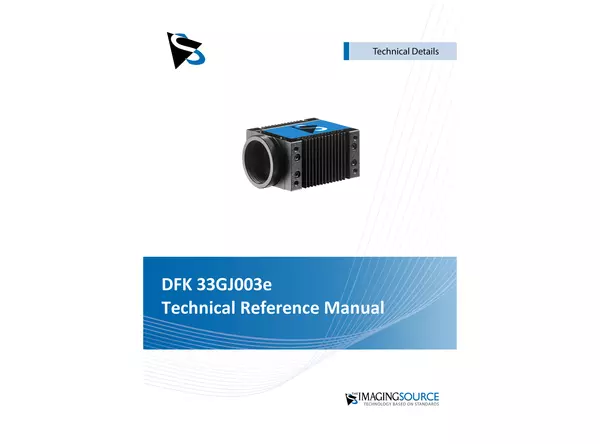

DFK 33GJ003e Technical Reference Manual | | 1.2 | 12月 2023 |
 |
