| 特性概要 | |
| 視覺標準 |  |
| 動態範圍 | 10 bit |
| 解析度 | 720×540 (0.4 MP) |
| 幀率 | 539 fps |
| 視訊輸出格式 | 8-Bit Monochrome, 12-Bit Packed Monochrome, 16-Bit Monochrome |
| 介面 (光學) | |
| 感測器類型 | CMOS Pregius |
| 感測器規格 | Sony IMX287 |
| 快門 | 全局 |
| 規格 | 1/2.9 inch |
| 畫素 | 水平: 6.9 µm, 垂直: 6.9 µm |
| 鏡頭接口 | C/CS |
| 介面 (電子) | |
| 介面 | USB 3.1 |
| 供應電壓 | 4.75 VDC 至 5.25 VDC |
| 消耗電流 | 大約 380 mA @ 5 VDC |
| 自動光圈控制 | |
| 觸發器 | |
| 輸入/輸出 | |
| 介面 (機械) | |
| 尺寸 | 高: 36 mm, 寬: 36 mm, 長: 25 mm |
| 重量 | 70 g |
| 調整 | |
| 快門 | 1 µs 至 30 s |
| 增益 | 0 dB 至 48 dB |
| 環境 | |
| 外殼溫度 (工作) | -5 °C 至 50 °C |
| 溫度 (儲存) | -20 °C 至 80 °C |
| 濕度 (作業) | 20 % 至 80 % (非冷凝) |
| 濕度 (儲存) | 20 % 至 95 % (非冷凝) |
| 依實際情形調整更動 | |
 |
Industrial Cameras: Spectral Sensitivity | | 1.30 | 11月 2017 |
 |
Industrial Cameras: USB - 22, 27, 37, 42 and 72 Series - Trigger and I/O | | 1.6 | 12月 2017 |
 |
Dimensional Diagrams for 27, 33, 33e, 37, 38 Series | | 2.0 | 12月 2017 |
 |
Datasheet for Sony IMX287LLR CMOS Sensor | | 1.0 | 10月 2017 |
 |
STEP File DxK 37BU CS-Mount (154-13-60) | | 1.0 | 1月 2018 |
 |
STEP File DxK 37BU C-Mount (154-13-62) | | 1.0 | 1月 2018 |
 |
The Imaging Source Catalog | 新的 | 2010.07 | 10月 2024 |
 |

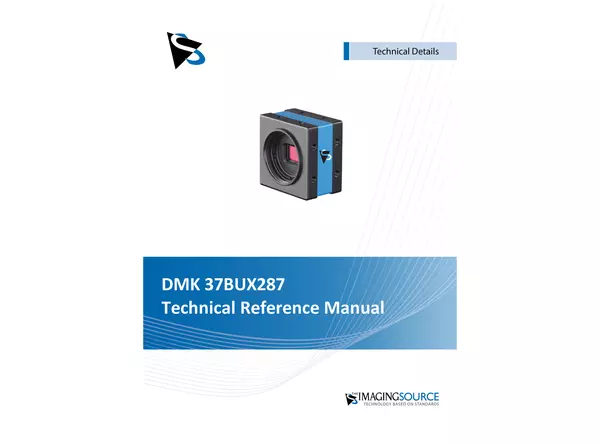

DMK 37BUX287 Technical Reference Manual | | 1.1 | 8月 2023 |
 |
GigE Vision 相機 GenTL Producer | 新的 | 1.3.1.860 |  |
9月 2024 |
 |
USB3 Vision 相機 GenTL Producer | 新的 | 1.3.1.501 | |
9月 2024 |
 |
非 GenICam 相機的 GenTL Producer (BETA) | | 2.0.0.390 | |
3月 2024 |
 |
適用於 USB 33U, 37U, 38U相機及DFG/HDMI轉換器的設備驅動程式。 | | 5.1.0.1719 | |
2月 2022 |
 |
IC Imaging Control 4 SDK | 新的 | 1.2.0.2954 | |
9月 2024 |
 |
IC Imaging Control C++類庫(C++項目適用) | | 3.5.7 | |
12月 2022 |
 |
IC Imaging Control .NET元件(C#和VB.NET項目適用) | | 3.5.7 | |
12月 2022 |
 |
IC Imaging Control C 範例 | | 3.4.0.51 | |
11月 2017 |
 |
IC Barcode - 1D and 2D Barcode Reader for IC Imaging Control | | 1.1.0.704 | |
3月 2021 |
 |
IC Barcode for Linux AMD64/x64 | | 1.1.0.703 |  |
3月 2021 |
 |
IC Barcode for Linux ARM 64 Bit | | 1.1.0.703 | |
3月 2021 |
 |
tiscamera Camera Library for Ubuntu 18.04 and 22.04 64 Bit on x64 Architecture | | 1.1.0.4139 | |
4月 2023 |
 |
tiscamera Camera Library for Ubuntu 20.04 64 Bit on x64 Architecture | | 1.1.0.4139 | |
4月 2023 |
 |
tiscamera Camera Library for ARM 64 Ubuntu 18.04 and 22.04 64 Bit | | 1.1.0.4139 | |
4月 2023 |
 |
tiscamera Camera Library for ARM 64 Ubuntu 20.04 64 Bit | | 1.1.0.4139 | |
4月 2023 |
 |
tiscamera Development Package | | 1.1.0.4139 | |
4月 2023 |
 |
IC Capture - Image Acquisition | | 2.5.1557.4007 | |
5月 2023 |
 |
IC Measure - 手動式螢幕測量和圖像擷取 | | 4.0.0.219 | |
5月 2024 |
 |
IC Measure for AMD 64 Linux | | 3.0.0.503 | |
6月 2023 |
 |
IC Measure for ARM 64 Linux | | 3.0.0.503 | |
6月 2023 |
 |
tcamdutils for Linux on x64 | | 1.0.0.560 | |
6月 2022 |
 |
tcamdutils for Linux ARM64 | | 1.0.0.560 | |
6月 2022 |
 |
tcamdutils-cuda GPU Enhanced Processing on NVIDIA® Tegra | | 1.2.0.397 | |
7月 2022 |
 |
tcamtegrasrc for MIPI and FPD Link Cameras on NVIDIA® Tegra | | 1.2.0.398 | |
7月 2022 |
 |
tiscamera Linux 32 Bit Camera Library for ARMHF Architecture | | 1.1.0.4139 | |
4月 2023 |
 |
tcamdutils 32 Bit for Raspberry PI OS | | 1.0.0.560 | |
6月 2022 |
 |
Raspberry PI GStreamer Source for The Imaging Source MIPI Cameras | | 1.3.0.662 | |
1月 2023 |
 |
tcamprop for Raspberry PI OS | | 0.1.0 | |
3月 2021 |
|
tiscamera Camera Library for Ubuntu 18.04 and 22.04 64 Bit on x64 Architecture | | 1.1.0.4139 | |
4月 2023 |
|
tiscamera Camera Library for Ubuntu 20.04 64 Bit on x64 Architecture | | 1.1.0.4139 | |
4月 2023 |
|
tiscamera Camera Library for ARM 64 Ubuntu 18.04 and 22.04 64 Bit | | 1.1.0.4139 | |
4月 2023 |
|
tiscamera Camera Library for ARM 64 Ubuntu 20.04 64 Bit | | 1.1.0.4139 | |
4月 2023 |
 |
IC Imaging Control TWAIN驅動擴充套件 | | 3.0.0.144 | |
2月 2021 |
 |
Cognex VisionPro AIK擴充套件 | | 3.4.2.0 | |
7月 2019 |
 |
IC Imaging Control LabVIEW擴充套件 | | 3.4.0.41 | |
9月 2019 |
 |
IC Imaging Control Matlab R2013b,R2014擴充套件 | | 3.4.0.58 | |
11月 2017 |
 |
NeuroCheck 6.2 ─ IC NeuroCheck Driver | | 1.1.0.122 | |
6月 2021 |
 |
IC Express - High-speed image capture into single image files | | 1.1.0.23 | |
7月 2019 |
 |
Processor Idle State Manager | | 2.2.0.2 | |
3月 2014 |
 |
Hot Pixel Correction (畫素修復工具) | | 4.0. | |
7月 2019 |
 |
IC Fullscreen Presenter - Video display on the entire screen | | 1.3.0.0 | |
1月 2023 |
 |
IC Line Profiler | | 1.1.0.9 | |
8月 2014 |
 |
Footswitch software for IC Capture | | 1.0.0.9 | |
9月 2014 |
 |
Demo Image for NVIDIA® Jetson Nano™ Development Kits | | 1.0.5 | |
2月 2022 |
 |
Demo Image for NVIDIA® Jetson Xavier NX™ Development Kits | | 1.0.5 | |
2月 2022 |
 |
Demo Image for Raspberry Pi 4 B Development Kits | | 1.0.0 | |
3月 2021 |
 |
DFG/USB2-lt轉換器驅動程式 | | 1.2.0.17 | |
8月 2011 |
 |
DFG/HDSDI驅動程式 | | 2.9.5 | |
4月 2018 |
 |
IEEE1394b相機驅動程式 | | 5.0.13.327 | |
3月 2014 |
 |
IEEE1394a相機驅動程式 | | 4.4.0.1 | |
6月 2011 |
 |
Video-to-FireWire轉換器驅動程式 | | 4.2.0.1 | |
2月 2011 |
 |
Scan2Docx | | 1.1.0.883 | |
2月 2015 |
 |
Scan2Docx OCR | | 1.1.0.883 | |
2月 2015 |
 |
IC 3D - 人性化三維校正；深度估測及三維可視化 | | 1.1 | |
8月 2018 |
 |
IC 3D SDK - 透過C及C++程式資料庫進行立體深度估測 | | 1.1 | |
8月 2018 |
 |
IC Imaging Control ActiveX | | 3.2.0.0 | |
7月 2012 |
 |
IC Imaging Control ActiveX Runtime Setup | | 3.2.0.0 | |
7月 2012 |
 |
IC Imaging Control - 範例 | | 3.3 | |
8月 2014 |
 |
IC Imaging Control Matlab 10.0 R2010擴充套件 | | 1.1.0.0 | |
7月 2013 |
 |
NeuroCheck 6.0 ─ IC NeuroCheck Driver | | 1.0.0.51 | |
9月 2014 |
 |
NeuroCheck 6.1 ─ IC NeuroCheck Driver | | 1.1.0.69 | |
5月 2018 |
 |
MIPI Sensor Drivers for NVIDIA® JetPack Version 4.4 | | 2.2.11-1 | |
12月 2021 |
 |
MIPI Sensor Drivers for NVIDIA® JetPack Version 4.4.1 | | 2.2.11-1 | |
12月 2021 |
 |
tis-tegra-filters for NVIDIA® Tegra | | 1.1.1 | |
12月 2021 |
